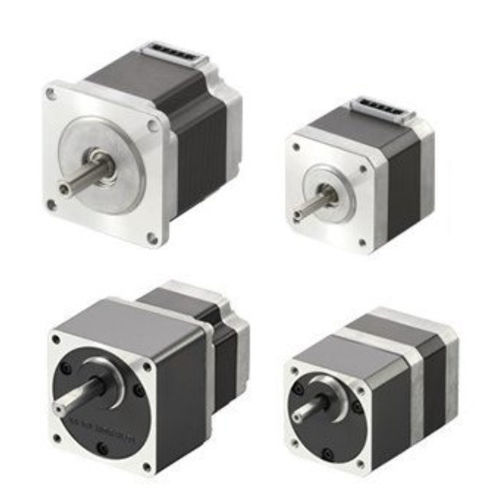

Two-phase stepper motor PKP series

DC100 VNEMA 23

High-torque, 2-phase unipolar stepper motors and Spur Gear (SH Type) stepper motors offer the optimum performance and value. In addition to offering high torque, the PKP series stepper motors offer more variety of electrical specifications, more frame sizes and encoder options for the right solution in stepper motors. Offers 1.2 ~ 1.7 Time More Torque 1.8° (200 pulse/rev) or 0.9° (400 pulse/rev) SH Geared (Spur) Type for Inertia Matching & Higher Torque Unipolar (6 lead wires) Encoders - 200 or 400 Lines of Resolution Electromagnetic Brake Option High-Torque PKP Series Stepper Motors After revising the magnetic design and structure design of the PKP Series, it products much more torque than the conventional motors of the same size. In addition, torque can be increased in the high-speed range by using high current motors. Reduced Power Consumption and Heat Output If the running current of a PKP Series stepper motor is decreased and the motor is operated at the same torque as the PK Series standard type, current consumption and heat output can be reduced.
