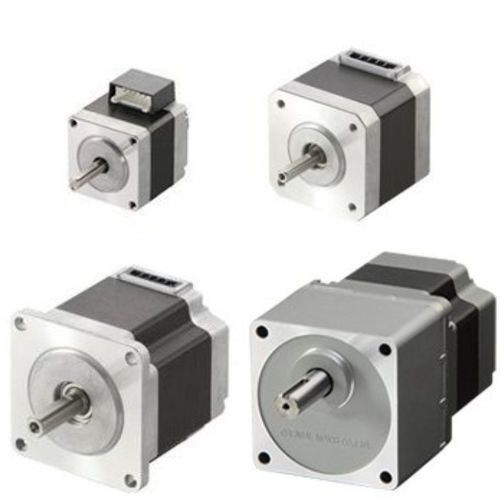

Five-phase stepper motor PKP series

DCpermanent magnetvariable reluctance

5-phase stepper motor offers balanced performance enhanced by high torque, low vibration and low noise. 0.72° (500 pulse/rev) & 0.36° (1000 pulse/rev) New Pentagon Winding Encoders - 500 or 1000 Lines of Resolution 5-Phase Stepper Motor Drivers Available Motor Cable sold separately (*required) High Accuracy In general, stopping accuracy tends to be lower during microstep operation than full step operation and this effect is more noticeable in a 1.8° motor. In this situation, using a 0.72°/0.36° stepper motor along with a CVD 5-phase driver enables a higher positioning accuracy. Stopping Accuracy: 0.72° = ±0.05° (±3 arcmin) 0.36° = ±0.034° (±2 arcmin) Low Vibration and Low Noise Because the basic step angle is small at 0.72° (0.36° for high-resolution type), the vibrations and noise are lower than the 2-phase stepper motor with a basic step angle of 1.8°. Also, vibrations and noise can be further reduced with the use of a 5-phase stepper motor and CVD 5-phase driver..
