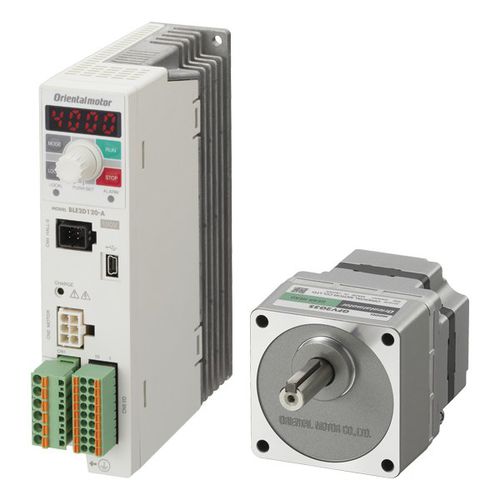

Brushless motor BLE2 series

DC220 V110 V

features a compact, high-power and high-efficiency brushless DC motor. The entire motor structure features our latest brushless DC motor technology and has been innovated in pursuit of the optimal performance. It is combined with a Driver that can be digitally set and controlled via external DC voltage or by the front panel. The BLE2 Series has a maximum speed of 4000 r/min. Speed ratio of 1:50 (80 to 4000 r/min) is achieved. Featuring 30 W (1/25 HP), 60 W (1/12 HP), 120 W (1/6 HP), 200 W (1/4 HP), 300 W (2/5 HP) and 400 W (1/2 HP) output power models. Speed Control Range: 80 ~ 4000 r/min Advanced Performance and Features with Easy to Use Controls Torque Limit Function Parallel Shaft, Right-Angle Hollow Shaft Gear, Hollow Shaft Flat Gear or Round Shaft (no Gear) H1 Food-Grade Grease-Compatible gear motors available. Electromagnetic Brake Type Available IP65, IP66 and IP67 Types Available Imperial or Metric Shafts Available Features of Brushless DC Motors Brushless DC motors are more efficient and compact than AC induction motors and do not use brushes as compared to DC Brush motors. Brushless DC motors allow for quiet, long life maintenance-free operation. Brushless motors include permanent magnets in the motor’s rotor providing high power and high efficiency and built-in hall effect IC in the stator for speed detection. Speed is controlled through a driver by using feedback signals from the motor. Wide Speed Control Brushless DC motors have a broader speed control compared to three-phase AC inverter driven motors. Additionally they are ideal for applications that require constant torque from low to high speed.
