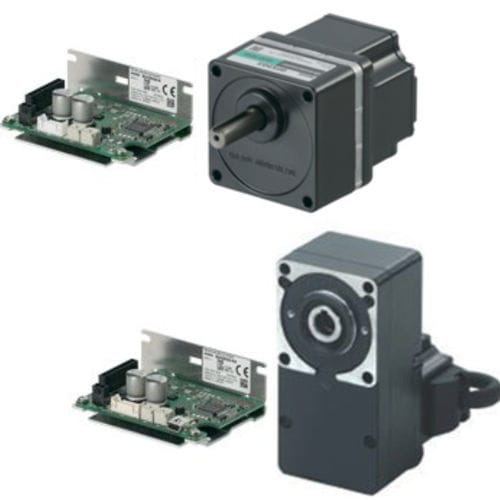

Brushless motor BLH series

DC24 Vpermanent magnet

Driver has been updated to now include three driver types; RS-485 Communications type, a Digital type driver or the traditional Analog type. The BLH Series is a 24 VDC, brushless DC motor and driver package offering a wide speed range of 100 to 3000 r/min (80 to 3000 r/min with digital driver type and RS-485 communication type). RS-485 Communication and Digital type driver is used with our MEXE02 support software (available for free download) for improved functions including torque sensing and predictive maintenance monitoring. A wide range of motor options are available to meet you application needs. The BLH Series comes with long-life, high-strength gearheads that can produce up to 600 lb-in of torque. Compact, Board-type Driver (Analog, RS-485 Communication or Digital type) Cable or Connector Type Motors Speed Control via Potentiometer, DC Voltage or Support Software (Digital type) Torque Sensing and Monitoring (RS-485 or Digital type) 24 VDC Parallel Shaft, Hollow Shaft Flat Gear or Round Shaft (no Gear) Electromagnetic Brake Available Brushless DC Motors (BLDC Motors) Brushless DC motors have slim bodies and provide high output and high efficiency due to the built-in permanent magnets. The built-in sensor (hall IC) constantly monitors the motor's speed. No matter the load conditions, feedback control is carried out at all times so that the command speed and actual speed remain constant. Speed stability with feedback control Brushless DC motors compare the setting speed with the speed feedback signals from the motor at all times and adjust the motor's applied voltage. Speed is kept stable over the entire speed range from low to high even when the load fluctuates.
