AC gear-motor / brushless / planetary / coaxial
NX series

Add to MyDirectIndustry favorites
Compare this product

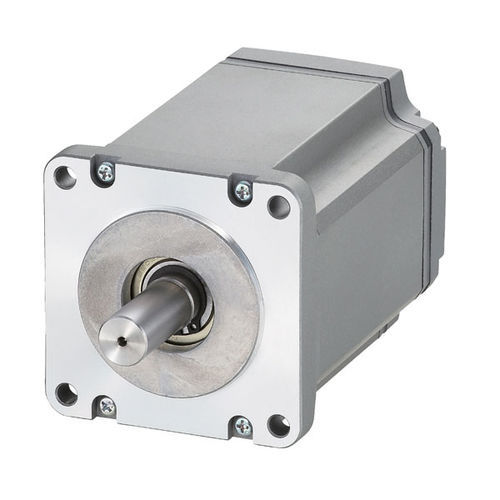

AC gear-motor / brushless / planetary / coaxial AC gear-motor / brushless / planetary / coaxial - NX series
{{requestButtons}}

Characteristics

  • Motor type:

    AC, brushless

  • Type:

    planetary

  • Shaft orientation:

    coaxial

  • Torque:

    1 - 5 Nm, 50 - 100 Nm

  • Other characteristics:

    compact, precision

Description

The NX Series servo motors are capable of highly accurate control with easy operation, similar to stepper motors. These servo motors are specialized for high-response, high-precision positioning. As a motor capable of accurate rotation angle and speed control it can be used for a variety of equipment.

Tuning Free
Compact and High Power
Wide Variable Speed Range
Standard or Planetary Geared Type
Electromagnetic Brake Types
NX Series Driver Required*

Easy Operation

As with a stepping motor, stable operation can be achieved in high inertia drive and belt mechanism drive applications without gain adjustment using the servo motors. Also, adjusting the gain manually enables operation under even more stringent load conditions.

Achieves High Inertia Drive

With automatic tuning, operation up to 50 times the rotor inertia is possible. With manual tuning, operation up to 100 times the rotor inertia is possible.

Achieves Smooth Operation with Belt Mechanisms

Belt mechanisms can be operated with the same performance as a stepping motor without the occurrence of vibration before stopping.
Easy Handling

Basic settings and adjustments are made with switches and potentiometers on the front panel. This design allows for easy control without a computer and even saves the hassle of complicated UP and DOWN key operations.
Easy Setting and Easy Monitoring

By using the control module (OPX-2A) [sold separately] or data setting software (MEXE02) [sold separately], it is possible to perform changing of parameters, function setting and monitoring that is better suited to your system.
