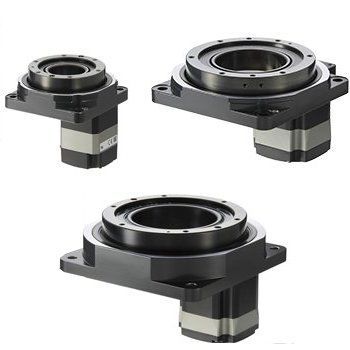

Rotary actuator DGII series
electricprecisionhollow-shaft

rotary actuator
rotary actuator
rotary actuator
rotary actuator
Add to favorites
Compare this product


Characteristics

Movement
rotary
Type
electric
Other characteristics
precision, hollow-shaft
Force

Min.: 100 N

Max.: 400 N

Torque

0.9 Nm, 4.5 Nm, 12 Nm, 50 Nm
(0.664 ft.lb, 3.319 ft.lb, 8.851 ft.lb, 36.878 ft.lb)

Description

The DGII Series is a line of of products that combine a high rigidity hollow rotary table with an AlphaStep absolute encoder AZ series closed loop stepper motor and driver package. It retains the ease of use of a stepper motor, while also allowing for highly accurate positioning of large inertia loads. Integrated actuator and stepper motor makes design easier Easy Home Setting and Return-to-Home without need for sensors Large-diameter hollow output table Stepper motor provides excellent performance Agile responsiveness Stability at low speeds Tuning-free Requires AZ Series Driver (sold separately) High Positioning Accuracy Non-Backlash Repetitive Positioning Accuracy ±15 sec Lost Motion 2 arc minutes Note: The repetitive positioning accuracy is measured at a constant temperature (normal temperature) under a constant load. Large-Diameter, Hollow Output Table Makes Simple Wiring and Piping Possible The large diameter hollow hole (through-hole) helps reduce the complexity of wiring and piping, thus simplifying your equipment design. The gear-reduction mechanism employs precision gears along with a proprietary adjustment mechanism that eliminates backlash. The repetitive positioning accuracy from a single direction is ±15 sec., while lost motion in a positioning operation from two directions is 2 arc minutes. These characteristics make the DGII series the ideal choice for applications in which accurate positioning is a must. The hollow output table is integrated with a high rigidity crossroller bearing*. The structure improves permissible thrust load and moment load while maintaining high torque.
