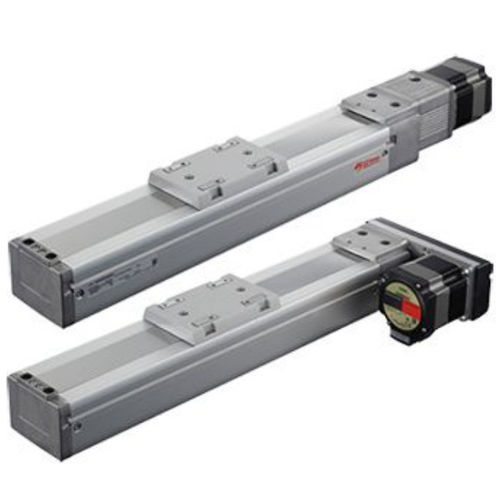

Electric actuator EZS series

linearball screwstainless steel

Compact, high-rigidity electric linear slides with simple, dust-resistant structure providing the high response, low vibration and hunting-free operation of a stepper motor in an electric linear slide. A wide variety of options to suit the equipment space and environment, including straight type and reversed motor type. Being compact and rigid, this series is effective in supporting large transportable mass. Equipped with battery-free absolute encoder Positioning information can be known without a sensor High reliability using closed loop control Reduced motor heat and reduced energy consumption through high efficiency design Electromagnetic Brake available AC or DC Input AZ Series Drivers required (sold separately) Cleanroom Type is available. Please contact us for the details. High Rigidity / High Accuracy Despite the small size, high permissible moment loads have been achieved by using a highly rigid guide. High Rigidity and High Accuracy Guide The LM Guide™ from THK is used as the guide hardware. It is a thin, stainless steel guide that can withstand high moment loads. The guide also has excellent traveling parallelism, which has been reduced to 0.03 mm or less. Space-Saving Maximum use of space is possible because the equipment doesn't interfere with the load. Equipment can be installed in contact with surrounding structures. Variable Cable Outlet Direction The motor attachment direction can be changed to any of 4 directions*, allowing the cable outlet to be changed to best suit the installation location.
