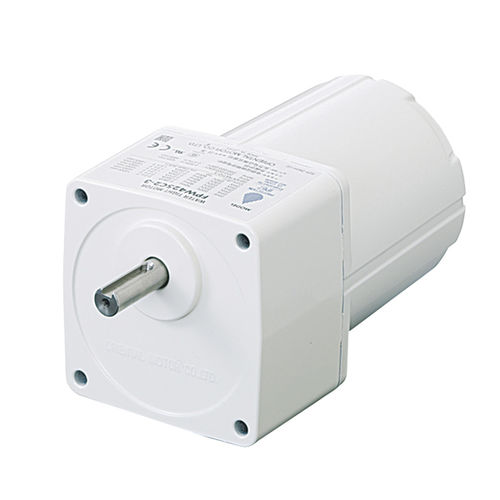

Waterproof motor FPW seriesasynchronoussingle-phase220 V
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, single-phase
- Voltage
- 220 V, 110 V, 100 V
- Protection class
- IP67, waterproof, dust-proof, rugged
- Applications
- for industrial applications, for the chemical industry, for agribusiness, heavy-duty
- Other characteristics
- constant speed
- Power
25 W, 40 W, 60 W, 90 W
(0.03 hp, 0.05 hp, 0.08 hp, 0.12 hp)- Intensity
Max.: 1.57 A
Min.: 0.21 A
- Torque
Max.: 30 Nm
(22.126864 ft.lb)Min.: 0.29 Nm
(0.213893 ft.lb)- Rotational speed
Max.: 1,600 rpm
(10,053.0965 rad.min-1)Min.: 1,200 rpm
(7,539.8224 rad.min-1)- Diameter
Max.: 104 mm
(4.09 in)Min.: 80 mm
(3.15 in)
Description
Motors with IP67 (FPW)
FPW series
Waterproof, dust-resistant asynchronous motors with protection class IP67
Features
Waterproof
Dust-resistant
Corrosion-resistant
IP67
Frame size: 80, 90, 104 mm
Output power: 25 to 90 W
Rated speed: 1200 to 1600 rpm
Permissible torque: 0.29 to 30 Nm
VIDEO
