Mechanical clamping system VLe Series
workpiecemachiningmodular

mechanical clamping system
mechanical clamping system
mechanical clamping system
mechanical clamping system
mechanical clamping system
mechanical clamping system
Add to favorites
Compare this product


Characteristics

Type
mechanical
Applications
workpiece, machining
Other characteristics
modular
Clamping force

Max.: 260 kN

Min.: 45 kN

Description

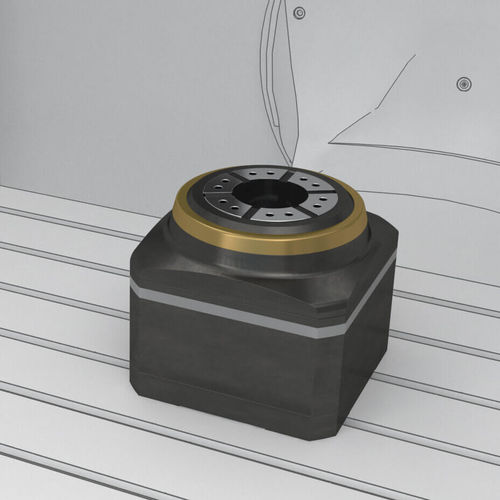

The electromechanical Ortlieb VLe clamping unit is ideally suited for use as a clamping device for stationary clamping of workpieces in drilling, milling and machining centres. Mobile use The Ortlieb VarioLine VLe can also be used for automated external loading using robots or automated pallet handling. Ideally suited for series production. Modular external and internal clamping An additional function provided by the VarioLine allows quick and easy conversion from external to internal clamping. The chuck body and clamping element are replaced in order to do this but the basic module stays the same. Monitoring the clamping force, position and workpiece system With the VarioLine, the clamping force is built up and the clamping position monitored indirectly by means of the servomotor's current control system or optionally by means of force sensors in the chuck body. The clamping force is maintained by means of frictional engagement via the self-retention mechanism in the planetary rolling contact gears, even with the servomotor switched off. There is the optional possibility of monitoring and correcting the clamping force on the workpiece via the servo controller during the machining process. The position of the workpiece in relation to the contact surface on the clamping device can also be monitored if requested. This measurement is performed using the inductive or capacitive sensors in the chuck body. Ideal conditions for Industry 4.0 integration.
