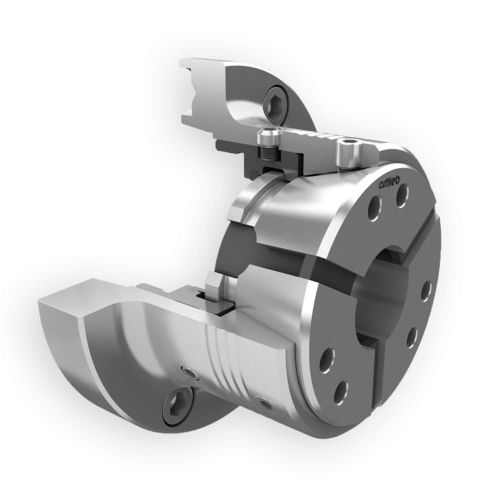

Milling tool holder SPANNAX®

grindingfor turning applicationsmodular

Modular. For all applications. On any machine. This compact chucking system can be used on turning, grinding, milling and indexing table machines. You can compose the individual chuck components as required due to the modularity of the system. All you need is the maximum work piece diameter and the size of the spindle nose of your machine. The appropriate adapter can be manufactured by yourself. Of course we are pleased to produce the adapter for your machine. Just send us the spindle dimensions or fax the filled-out form. The pull-down chucks are available in the following design: • Through hole chuck for bar machining • Endstop chuck with removable endstop for insert parts and bar processing • DL-chuck with removable endstop for position-neutral clamping of insert parts and barmaterial • Machine specific special solutions on request Your benefit: • Safe clamping by constant clamping force also at increasing rotational speed • High rigidity by parallel clamping of clamping heads • Increased flexibility of your production machine due to large clamping range • Extension of working space due to compact design and reduction of interfering edges
