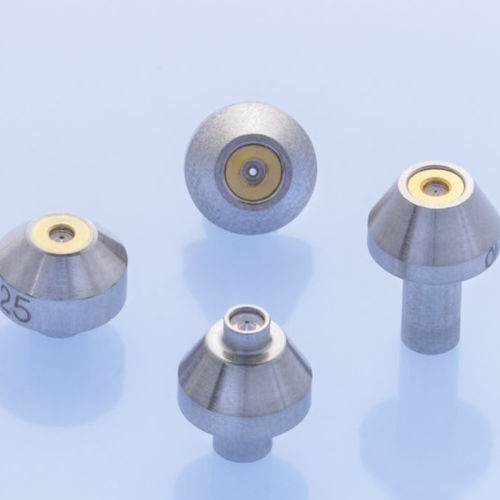

Cutting nozzle WS0 series

for watersapphireindustrial

For the perfect cut Perfect cutting performance is made possible with sapphire ring jewels – thanks to their precise hole and the optimum edge rounding. This determines the jet geometry and service life of the nozzle. The supplied water is shaped into a thin water jet of 0.08 to 0.4 mm diameter under up to 4000 bar in pressure and leaves the nozzle at more than twice the speed of sound. Image: Pure water jet cutting Pure water jet cutting The medium of water is exclusively used for cutting here. Soft materials, such as foam, insulation, rubber, sealing material, paper and much more, can thus be severed very quickly. Abrasive cutting For harder materials, the power of the water jet is increased with the addition of an abrasive, such as special garnet sand. Even steel, natural stone, ceramic, plastic, glass, carbon and much more can thus be cut perfectly. Micro cutting Micro cutting systems are used for the smallest holes – with a diameter of 0.3 mm. They cut even the finest parts from titanium, brass, chromium steel and special functional steels. As well as polymers, ceramic and glass. The benefit: no heat is transferred into the workpiece and the material structure is not influenced.
