LED stack light OMT

steady3-colorIP20

Short description

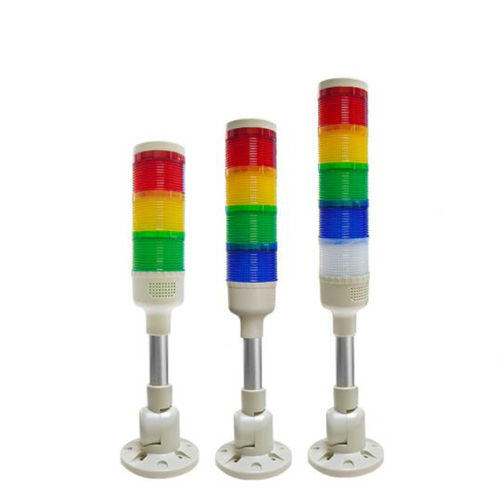

Otennlux LED signal tower light model OMT, 50 mm diameter, 24V DC, 3-layer configuration (red, yellow, green) with integrated buzzer for combined visual and audible industrial signaling.

Details

• 3-layer LED signal tower, colors: red, yellow, green
• Lamp body diameter: 50 mm
• LED multi-signal modules for clear visual indication
• Plastic cover for protection and light diffusion

Available sizes / Color configurations

• One layer — red color by default
• Two layers — red & green by default (from top to bottom)
• Three layers — red, yellow & green by default (from top to bottom)
• Four layers — red, yellow, green & blue by default (from top to bottom)
• Five layers — red, yellow, green, blue & white by default (from top to bottom)
• Customization supported for other color configurations

Product Details Table
Product Name: LED SIGNAL TOWER LIGHT
Item No.: OMT
Brand: Otennlux
Diameter in mm: 50 mm
Material: Plastic
Signal effect: Steady light
Protection rating: IP20
Voltage: 24V DC
Color: 3 colors
Buzzer: YES
Installation: Straight / straight lengthen / foldable / mount
Working temperature: -25 to 55 °C
Connecting: cable / M12
Warranty: 3 Years

Certificates & Exhibitions

• Certifications: CE / ROHS / UL / ETL / CCC / Anti-Explosion (as listed)
• Manufacturer participation in industry exhibitions (examples listed on page)

Commercial information

• Payment terms: EXW / FOB / CNF
• Product origin: China
• Shipping ports: Guangzhou / Shenzhen / Shanghai
• Lead time: 5-7 days

Technical specifications

• Product Name: LED SIGNAL TOWER LIGHT
• Model / Item No.: OMT
• Brand: Otennlux
• Diameter: 50 mm
• Material: Plastic
• Signal effect: Steady light
• Protection rating: IP20
• Voltage: 24V DC
• Color: 3 colors (red, yellow, green)
• Buzzer: Yes (louder buzzer specified)
• Installation methods: Straight, straight lengthen, foldable, mount
• Working temperature: -25 to 55 °C
• Connection options: cable or M12
• Warranty: 3 Years
• Payment: EXW / FOB / CNF
• Origin: China
• Shipping ports: Guangzhou / Shenzhen / Shanghai
• Lead time: 5-7 days
