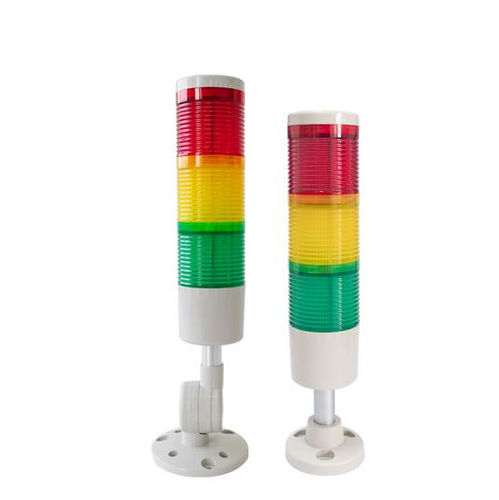

LED stack light OLM1-301-BN-RYG

steady3-colorIP20

Overview
Otennlux OLM1-301-BN-RYG is a 50 mm diameter, 24 V DC, 3-layer LED stack light with steady-light signal effect. Designed as an economical industrial signal tower for basic visual status indication in machinery and production lines.

Key features

• 3-layer LED tower: standard top-to-bottom colors red, yellow, green.
• 50 mm diameter compact lamp body.
• High-quality plastic cover for light diffusion.
• Steady-light signal effect suitable for continuous indication.
• Available with alternative color configurations on request.
• Installation options: straight, extended straight, foldable, mounting base.

Layer/color configurations

• One layer — red by default.
• Two layers — red & green by default (top to bottom).
• Three layers — red, yellow, green by default (top to bottom).
• Four layers — red, yellow, green, blue by default (top to bottom).
• Five layers — red, yellow, green, blue, white by default (top to bottom).

Technical specifications
Product Name: LED SIGNAL TOWER LIGHT
Item No.: OLM1-301-BN-RYG
Brand: Otennlux
Diameter: 50 mm
Material: Plastic
Signal effect: Steady light
Protection rating: IP20
Voltage: 24 V DC
Color: 3 colors (standard configuration: red/yellow/green)
Buzzer: No
Installation: Straight / Straight (extended) / Foldable / Mount
Working temperature: -25–55°C
Connecting: cable / M12
Warranty: 3 Years

Certifications & notes
CE / ROHS / UL / ETL / CCC / Anti-Explosion (listed by manufacturer).
