LED stack light OMC1-301

2-color3-color4-color

Overview

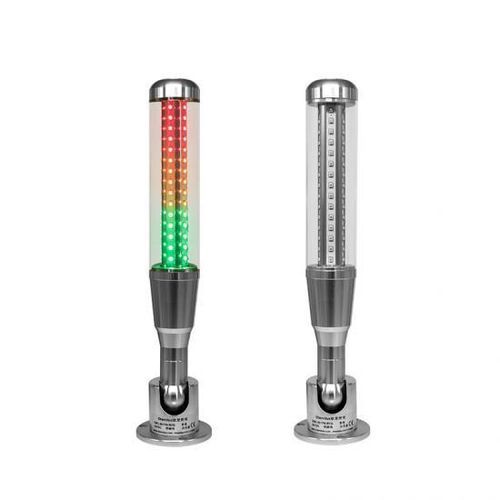

OMC1-301 is a 3-layer LED signal tower light with integrated buzzer, designed for industrial signalling on automated equipment and machine tools. The unit features an aluminum body, modular LED segments and optional cable or M12 connection.

Details

• 3-color LED tower lamp with integrated buzzer
• Visible distance approximately 500 m at night
• Modular LED modules allow reconfiguration or addition after installation without rewiring
• Mixed-prism lampshade reduces visual blind spots and improves long-distance visibility
• Double-mirror structure enhances light propagation and color discrimination with minimal LEDs
• Foldable installation design for compact mounting
• Warranty: 3 years

Applications

• CNC machine tools and industrial automation
• Textile and packaging machinery
• Security inspection and protection equipment
• Electronic manufacturing and LED packaging lines
• Laser and spectral equipment
• Food and filling machines
• Ceramics and specialized production lines
• Automated warehouses and human–machine interfaces

Technical data

• Product name: 3-layer CNC machine LED signal tower light with buzzer
• Item No.: OMC1-301-QN-RYG
• Brand: Otennlux
• Material: Aluminum
• Voltage: 24V or 100–277V
• Available colors: 1 / 2 / 3 / 4 / 5 colors
• Buzzer: Integrated
• Installation: Foldable
• Connection: Cable or M12 connector
• Visible distance: ~500 m (night)
• Lifespan: ~50,000 hours
• Warranty: 3 years

Features / Advantages

• Long-life LEDs (~50,000 hours)
• Aluminum PCB and housing for improved heat dissipation and minimal lumen depreciation
• Modular design enables on-site module rearrangement or expansion without rewiring
• Multiple color configurations (up to 5 colors)
• Certifications available: CE / RoHS / UL / ETL / CCC / Anti-Explosion (depending on configuration)

Specifications

• Brand: Otennlux
• Model / Series: OMC1-301
• Item number: OMC1-301-QN-RYG
• Material: Aluminum
• Voltage options: 24V or 100–277V
• Colors: 1/2/3/4/5
• Buzzer: Integrated
• Installation: Foldable
• Connection: Cable / M12
• Visible distance: ~500 m
• Lifespan: ~50,000 hours
• Warranty: 3 years
