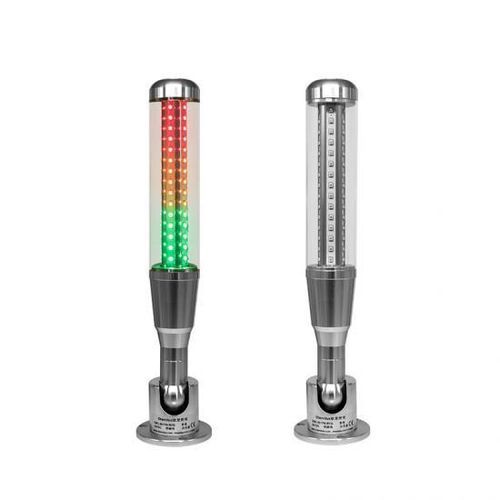

LED stack light OMC1-301

flashingsteady3-color

Product overview
OMC series LED signal tower light designed for CNC machines and industrial automation. Aluminum body, integrated buzzer and multi-mode lighting. Modular LED assemblies enable easy configuration and maintenance.

Details

• 3 colors and multiple light modes suited to complex mechanical equipment
• Visible distance approximately 500 m at night
• Efficient LED multi-signal modules with long service life (~50,000 hours)
• Mixed-prism lampshade to reduce visual blind spots and improve long-distance visibility
• Double-mirror structure for enhanced light propagation and clear color differentiation with fewer LEDs
• Modular design: modules can be rearranged or added after installation without rewiring
• 3-year warranty
• Soft-curve metal-texture design; form factor adapted to industrial equipment

Application

• Numerically-controlled machine tools
• Textile machinery
• Security and protection equipment
• Security inspection devices
• Electronic equipment
• Automated production lines
• LED packaging equipment
• Spectral equipment
• Laser equipment
• Food filling equipment
• Ceramic machinery
• Automated warehouses (autowarehouse)
• Human-machine interface panels

Product table
Product Name: 3 layers CNC machine LED stack light
Item No.: OMC1-301-QN-RYG
Brand: Otennlux
Material: Aluminum
Voltage: 24V / 100-277V
Color options: 1 / 2 / 3 / 4 / 5 colors
Buzzer: With Buzzer
Installation: Foldable
Connecting: cable / M12
Warranty: 3 Years
Payment: EXW / FOB / CNF
Product origin: China
Shipping port: Guangzhou / Shenzhen / Shanghai
Lead Time: 5-7 days

Additional features

• LED lifespan around 50,000 hours
• Aluminum PCB for improved heat dissipation and low light decay
• Available certifications: CE / ROHS / UL / ETL / CCC; optional explosion-proof versions

Technical specifications

• Model: OMC1-301
• Full item code: OMC1-301-QN-RYG
• Brand: Otennlux
• Product type: 3-layer CNC machine LED stack light
• Body material: Aluminum
• Voltage range: 24V and 100-277V
• Color variants: 1 to 5 colors available
• Buzzer: integrated
• Light modes: steady / flashing (multi-mode)
• Installation: foldable; modules detachable and reconfigurable
• Connection: cable or M12 connector
• LED lifespan: ~50,000 hours
• Warranty: 3 years
• Origin: China
• Typical lead time: 5-7 days
