  4. Otto Bihler Maschinenfabrik GmbH & Co. KG

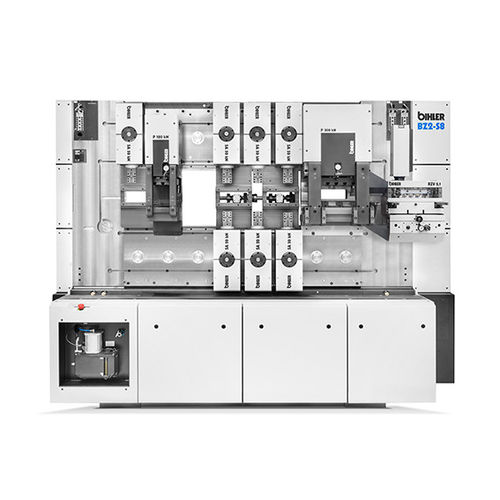

Stamping press BZ2-S8motorizedpunchingautomatic

stamping press
stamping press
Add to favorites
Compare this product
indicative price

Characteristics

Operation
motorized
Function
stamping, punching
Other characteristics
automatic, servo-driven
Force

50 kN, 300 kN

Description

Highlights BZ2-S8 High-performance manufacturing systems for mass production of more complex parts • - High production speeds up to 700 1/min. • - New: All processing units driven by servo motors • - New: Larger working space (plus 140 mm) for easy integration of processing modules • - New: Connection of presses and slide units to circulating lubrication system: drastically reduced oil consumption • - Easy and secure operation with VariControl VC 1 Technical Data Stroke rate: - continuously variable from 5 to max. 700 1/min. Press: - max. nominal stamping capacity 300 kN, stroke 10 mm Slide units: - max. nominal forming capacity 50 kN, max. stroke 10 mm Feed length: - mech. feed: max. 40 mm, servo feed: any feed pitch Material: - max. strip width 80 mm, max. wire Ø 4 mm Dimensions: - width 2,950 mm x depth 1,400 mm x height 2,190 mm (without enclosure) Weight - approx. 7,500 kg (with units and tooling, without enclosure)
