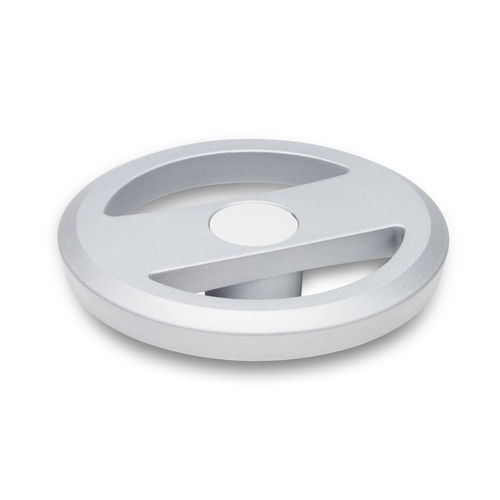

Operating handwheel GN 924spokedaluminum
Add to favorites
Compare this product
Characteristics
- Function
- operating
- Configuration
- spoked
- Material
- aluminum
- Outside diameter
125 mm, 140 mm, 160 mm, 200 mm
(4.92 in, 5.51 in, 6.3 in, 7.87 in)- Bore size
12 mm, 14 mm, 18 mm
(0.47 in, 0.55 in, 0.71 in)
Description
Spoked handwheels GN 924 are distinguished by modern design.
The removable plastic cover shrouds the fixing components such as countersunk washers and protruding or recessed shafts.
Catalogs
Ganter Catalogue 18.0
2210 Pages
