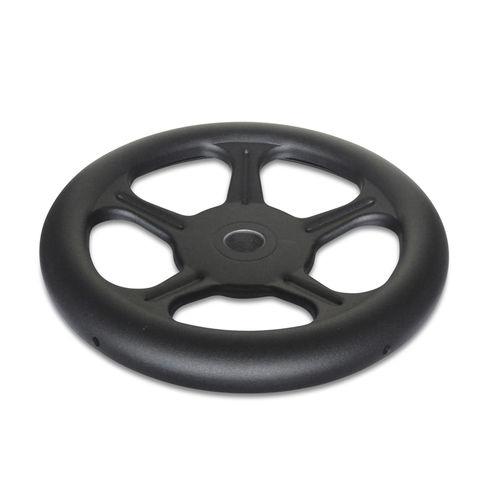

Operating handwheel GN 228spokedsteel
Add to favorites
Compare this product
Characteristics
- Function
- operating
- Configuration
- spoked
- Material
- steel
- Outside diameter
Max.: 400 mm
(15.75 in)Min.: 125 mm
(4.92 in)- Bore size
Max.: 24 mm
(0.94 in)Min.: 11 mm
(0.43 in)
Description
Handwheels GN 228 of sheet steel are robust and unaffected by shocks and knocks. The hub lengths l1 and the diameter d3 correspond to DIN 950.
