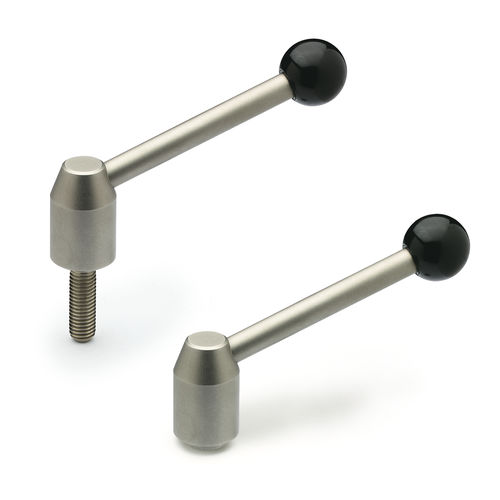

Stainless steel tension lever GN 212.5adjustablewith external threadinternal thread
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel
- Other characteristics
- adjustable, with external thread, internal thread
Description
Adjustable tension levers GN 212.5 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged.
Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.
Catalogs
Ganter Catalogue 18.0
2210 Pages
