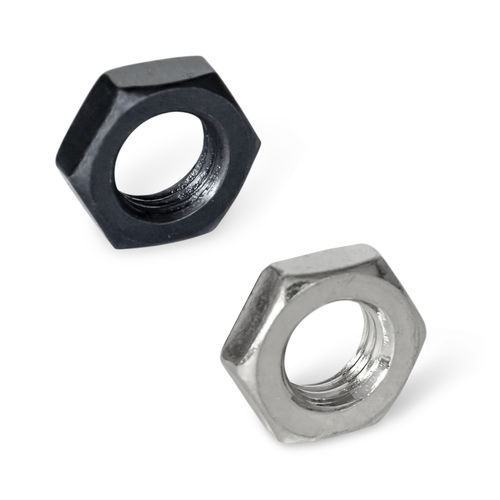

Flat nut DIN 8675hexagonalsteelstainless steel
Add to favorites
Compare this product
Characteristics
- Types
- hexagonal, flat
- Material
- steel, stainless steel
- Nominal diameter
Min.: 8 mm
(0.31 in)Max.: 24 mm
(0.94 in)- Height
Min.: 4 mm
(0.157 in)Max.: 12 mm
(0.472 in)- Width
Min.: 13 mm
(0.51 in)Max.: 36 mm
(1.42 in)
Description
Hexagon Thin Nuts with a fine thread ISO 8675 are used in bolted connections, e.g. as lock nuts to lock components and prevent accidental loosening, turning or shifting.
In addition, the nuts are also used together with indexing plungers, cam action indexing plungers, guide bushings or joint heads.
The flat design makes the hexagon nuts ideal for shorter threads. When mounting indexing plungers, they reduce the adjustment range only slightly, which may be of significance especially when using two lock nuts.
