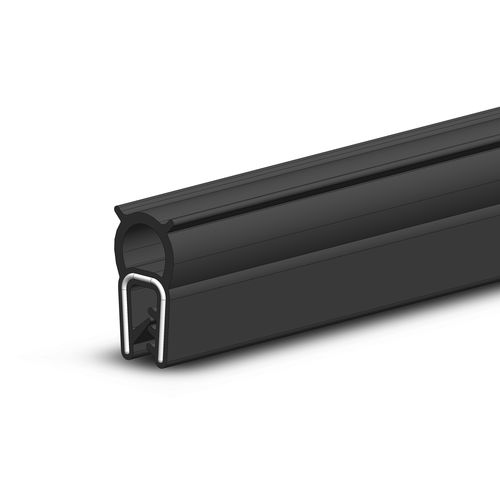

EPDM edge protector GN 2180

for profiles

Edge protection seal profiles GN 2180 can be used to seal doors, covers and hatches. The profiles are pressed by hand onto the front of metal sheets and plates. The embedded clamp insert prevents detachment. Glue or other adhesives are not required. When assembled, the profile should deform slightly according to w2. This ensures an optimal seal. Adherence to the guideline placement radii (r1... r4) is recommended in order to ensure a tight profile seal and to make assembly easier. The NBR profiles are recommended for use in cases where contact with fuels, oils or coolants can occur. EPDM profiles are certified according to UL 50 and UL 94-HB and are therefore approved for the US-American and the Canadian market.
