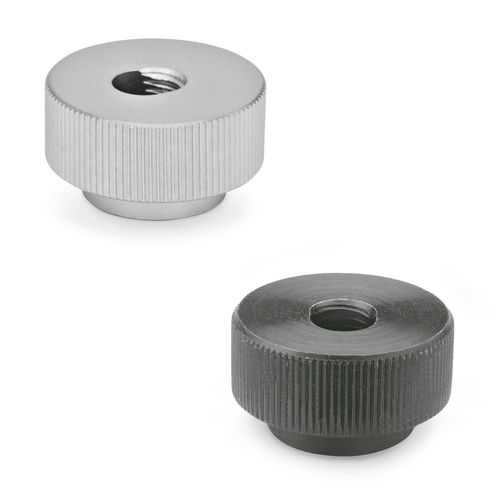

Knurled nut GN 6303.1metalthreadedsafety
Add to favorites
Compare this product
Characteristics
- Types
- knurled
- Material
- metal
- Other characteristics
- threaded, safety
- Nominal diameter
20 mm, 24 mm, 30 mm, 36 mm, 40 mm
(0.79 in, 0.94 in, 1.18 in, 1.42 in, 1.57 in)- Height
12 mm, 14 mm, 17 mm, 20 mm, 24 mm
(0.472 in, 0.551 in, 0.669 in, 0.787 in, 0.945 in)
Description
Quick release knurled nuts GN 6303.1 are used in such applications where the nut has to be completely removed after the releasing operation and re-fitted rapidly for re-clamping.
The nut is tilted over the threaded spindle. When in position, the nut is brought into a straight position for meshing of the two threads on nut and spindle. The nut will then have to be turned only by a fraction of a rotation to achieve clamping.
Functional safety exists only if the clamping surface lies at a right angle to the threaded bolt.
