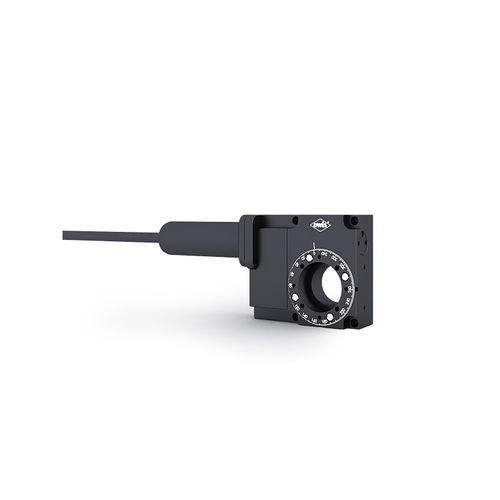

Rotary positioning stage DMT 40

motorized1-axisprecision

•step or DC motor with encoder, angular contact ball bearings, worm gear, limit switches CHARACTERISTICS •for use with SYS 40 •rotary table with retainer ø 25 mm and aperture ø 20 mm •precision angular contact ball bearings •preloaded worm gear •Hall-effect reference switch •2-phase step motor or DC motor with encoder •deformation-resistant aluminium •reflection-poor, black anodized •with OWISid option •mechanical limit switches Technical data of the motor cables as well as a guidance for the selection of the suitable cable for your combination of positioner and controller canbe found in the cable table. The rotary measuring stages DMT 40 allow unlimited rotation angles at resolutions of less than one angular minute. They are suitable for both horizontal as well as vertical rotation axes. The precision ball bearings and the worm gear are preloaded for low-backlash positioning. The rotary measuring stages are available with different motorizations. When mounted on the slide RT 40-20, the DMT 40 are for use with SYS 40. All aluminium parts have a top quality black anodized protective coating.
