Retrofitting motor 009137
brushlessDC60 V

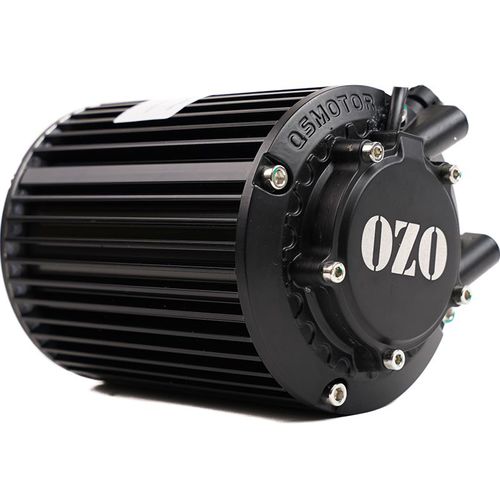

Retrofitting motor - 009137 - OZO - brushless / DC / 60 V
Retrofitting motor - 009137 - OZO - brushless / DC / 60 V
Retrofitting motor - 009137 - OZO - brushless / DC / 60 V - image - 2
Retrofitting motor - 009137 - OZO - brushless / DC / 60 V - image - 3
Retrofitting motor - 009137 - OZO - brushless / DC / 60 V - image - 4
Retrofitting motor - 009137 - OZO - brushless / DC / 60 V - image - 5
Retrofitting motor - 009137 - OZO - brushless / DC / 60 V - image - 6
Retrofitting motor - 009137 - OZO - brushless / DC / 60 V - image - 7
Retrofitting motor - 009137 - OZO - brushless / DC / 60 V - image - 8
Retrofitting motor - 009137 - OZO - brushless / DC / 60 V - image - 9
Add to favorites
Compare this product
Go to the OZO website for more information

Characteristics

Type
DC, brushless
Voltage
48 V, 60 V, 72 V
Configuration
compact, central
Number of poles
5-pole
Cooling mechanism
air-cooled
Applications
for boat, for surgical power tools, industrial, for pump, for automotive applications, for wood-processing machines, for electric screwdrivers, for blinds, heavy-duty, for medical equipment, for the oil and gas industry, retrofitting, for crusher, for heavy machinery, for air compressors, for drive systems, for rotary tables, for winches, for CPAP machine, for robotics, for the food industry, for machine tools, for washing machines, for drills, for collaborative robots, for lifting applications, for vacuum pumps, for wheelchairs, traction, for conveyor belts, for centrifugal pumps, centrifuge, for motorcycles, for roadheader, for the semiconductor industry, for circular saws, for roller shutters, for medical applications, for robotic lawnmowers, for suction units, solar, mill duty, blower, for marine applications, oil pump, for railway applications, for compressors, for deep well, for the electronics industry, for lawn-mowers, for electric actuators, for oil rig, for the chemical industry, for fans, agricultural, for massage equipment, propulsion, for water pumps, for the pharmaceutical industry, for furnaces and ovens, for roller mills, for household appliances, for sewing machine, for garbage disposals, for cutting machines, packaging machine
Other characteristics
high-performance
Power

1,000 W
(1.36 hp)

Intensity

15 A

Max.: 35 A

Torque

12 Nm
(8.850746 ft.lb)

Rotational speed

781 rpm
(4,907.1677 rad.min-1)

Description

Replace your 2-stroke or 4-stroke internal combustion engine easily and quickly with an electric motor. This Brushless PMSM central rotor motor is designed to deliver a power of 1000W at 72V with a maximum speed of 720 RPM. It will fit in place of the original combustion engine. Thermal equivalence of 2CV at cruising speed and 4CV at maximum power. The advantage with electric motors is that everything is adjustable via the power electronics: torque, acceleration ramp, braking ramp, motor braking force, acceleration dead time, engine speed, and more. The installation is very easy. We can additionally deliver a support in 304L Stainless Steel to bolt directly onto your chassis. Custom Stainless Steel supports can be provided through our in-house design office to best match your needs and simplify the motor installation. You can keep your original throttle controls or accelerator handle since the electronic throttle is directly connected to the original cable. The cable pull is therefore retained.
