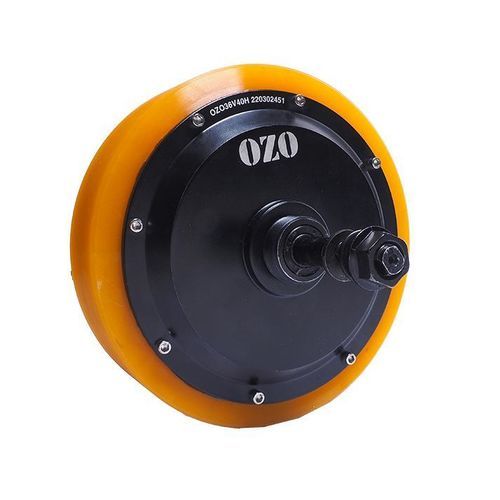

Brushless wheel motor 009388

DC36 V48 V

We offer a brushless electric wheel motor with a 220 mm diameter featuring a polyurethane band. This electric drive wheel allows for electric assistance on industrial or logistics carts such as push-pull trolleys, reducing operator workload. Our motors are perfectly suited for various applications, including push-pull trolleys or picking carts. Adding electric assistance reduces workload while increasing productivity. Power: 500W / Axle spacing: 170mm Cable length from axle: 150cm. This electric drive wheel is specifically designed to electrify all industrial rolling bases used in handling or logistics. Its main goal is to facilitate the electrification of your logistics or production carts, reducing operator fatigue while complying with CSR standards. With a continuous power of 500W, this drive wheel can motorize various equipment such as push-pull trolleys, service carts, picking carts, industrial racks, and even hospital beds. The motor comes with a 1500mm cable directly compatible with our OZO 25A industrial controller. Its 50mm wide polyurethane tread offers excellent grip on any industrial floor and eliminates the risk of punctures. The outer diameter of the tread is 220mm. The brushless motor operates in direct drive, ensuring completely silent operation when used with our programmable OZO 25A controller. Additionally, an integrated temperature sensor protects the motor from overheating under heavy load. Our programmable controller allows advanced customization of motorization parameters according to your needs, such as forward speed, torque, response time, acceleration, maximum voltage, etc. You will benefit from total control with the ability to move the cart forward or backward, activate regenerative braking, and the 'dead man' function for increased safety. Thanks to the vector technology of our controller, equipped machines can operate without noise pollution. This motorization perfectly meets the criteria for reducing workload and occupational risks, in compliance with new CSR standards. By electrifying your work tools such as hospital beds, service carts, push-pull trolleys, or other handling and picking carts, you can quickly and easily reduce these risks. This solution is ideal for quickly complying with CSR standards, for Industry 4.0, and for intralogistics needs. Voltage: 36V Weight: 7kg Motor technology: Brushless Direct Current Motor (BLDC Motor) Max power: 750W Max efficiency: 90% Motor Kv (RPM / V): 4.8 RPM / Volt Hall sensors: Yes Max current Ipmax: 20A Motor connector: Anderson PP30 for phases, JST for sensors and temperature probe Number of magnets: 20 Max speed under 36V: 6km/h Tread width: 50mm Cable length: 1500mm Admissible voltages: 36V - 48V Nominal current: 20A Protection index: IP65 Nominal torque: 45N.m Number of pole pairs: 20
