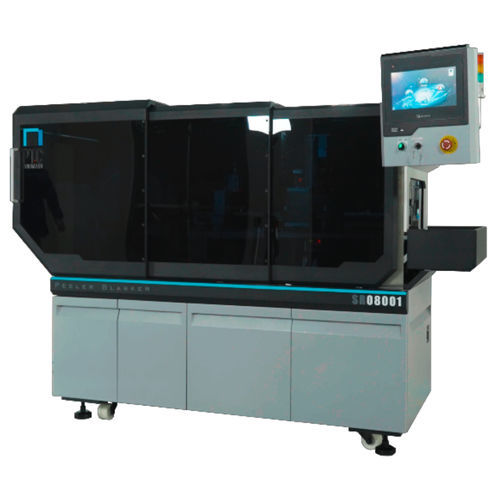

Laser cutting machine

foilfor ceramic tapesheet

• peels off Mylar from cast ceramic tape • cuts continuous cast tape into individual sheets • places cut sheets into a stack • rotates sheets 0, 90, 180 or 270 degrees before stacking SOFTWARE • OPC-UA Data communication • Unlimited storage for blanking recipes • Intuitive graphical user interface PTC CUTTING-EDGE • Specially designed Mylar peeler • Automatic tension control • Fast and reliable operation The PTC SR Series Peeler-Blanker is a fast, reliable, and easy-to-operate machine that turns continuous rolls of ceramic tape on Mylar into individual cut sheets, without the Mylar. Accurately cut sheets are loosely and precisely stacked on top of each other on an output tray. An operator removes the stacked sheets and transfers them to the downstream processes such as cover sheet preparation or any process requiring individual sheets such as screen printing, via forming, stacking or lamination. The loading of input rolls into the machine is guided by laser for optimal alignment of the tape during setup, making the operator job simple. A mechanism with proprietary design automatically peels off the Mylar from the cast tape without damaging the delicate ceramic tape which could be from 20uM to 500uM thick. The Peeler-Blanker works with variety of Mylar film thicknesses from 35 to 125uM.
