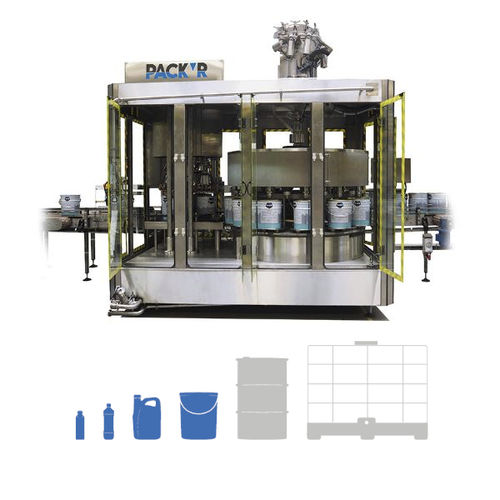

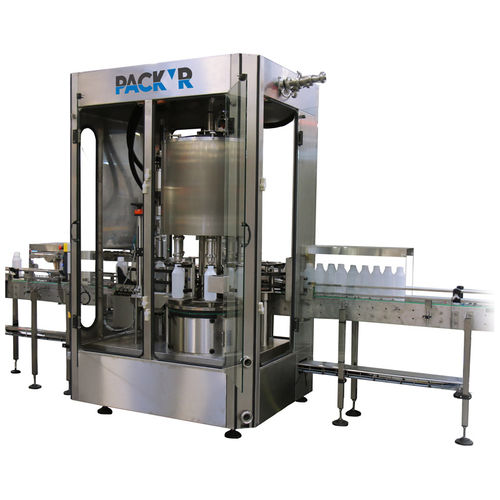

Rotary filling machine REVO-S

automaticbottlepail

The REVO-S is part of our automatic filling machines for liquid product. Many types of products are compatible with this filling machine (they can be foamy, viscous or pasty) and a variety of container types can be accommodated, e.g. bottles, jerrycans, buckets, cans. Filling accuracy is performed by a weighing scale (control, self-correction and statistics). The container is moving continuously during different operations (filling, capping, etc…) giving high throughput capacities. The product can be fed by gravity or by the use of a pump. Many configurations and options are available : - Various materials available, stainless steel or plastic (for corrosive application) - Available in ATEX for hazardous product - Patented Click & Play”tools - Patented Clean & Play”CIP for difficult products (paint for example) - Pressurized filling up to 2 bars available for viscous product. Benefits - High outputs - Quick changeover - Minimum product give-away with very high accuracy - High efficiency cleaning - Torque control Containers - Bottles - Jerrycans - Cans - Pails Capping system - Mechanical capping turret with torque limiters - Brushless capping turret (compatible with ATEX) - Screw caps - Push-on caps - Lid pressing or crimping Cadence and capacity - High speed up to 600 cpm - From 100mL to 20L Norm - ATEX - Explosion Proof Design - UL - CE - Legal metrology Markets - Agrochemicals - Chemicals - Paint - Petrochemicals - Vegetable oils - Food
