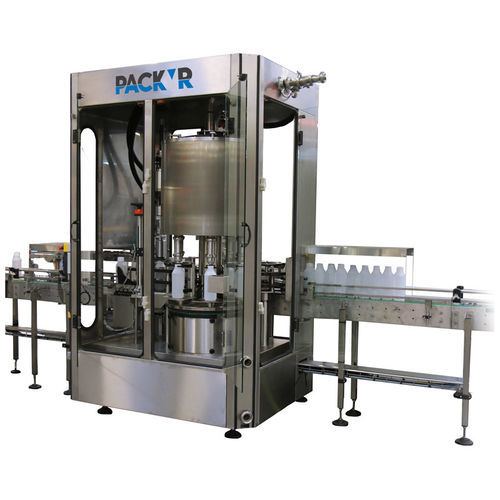

Automatic filling machine REVO-S C2-3

bottlefor liquidsfor the chemical industry

Description
The REVO-S C2 is a rotary weighing filler designed for precise weight-based filling of bottles, with integrated post-fill weight control and optional explosion-proof configuration.

• Weight-based filling: fill quantity is controlled by real-time weight measurement of the container.
• Post-fill control: automatic verification of filled quantity, drift correction and production statistics.

Capping and format changeover

• PACK’R COMPACT capping system on the outfeed starwheel provides flexible, high-productivity capping.
• Screw caps: up to 60 cps/min.
• Push-on caps: up to 100 cps/min.
• Full format changeovers (container + cap) in less than 30 minutes.

Technical features and advantages

• Pressurized tank: smaller tank volume; consistent product flow despite viscosity variations; reduced product waste; easier, more economical cleaning; closed system prevents contamination.
• Filling: no drips; high-accuracy weight filling; Legal Metrology option available; weighing accuracy stable against temperature variations; reduced product overfill.
• HMI: traceability; user-oriented interface; programmable recipes; maintenance indicators.
• Nitrogen purging (option): product protection after filling; prevents container collapse for thin-walled packaging.
• Tooling system: "Click & Play"® rapid-change tooling; color-coded tooling for specific containers; tool-free format changes.
• Capping system: compact outfeed capping system; two capping heads; cap presence and position checks.
• Cleaning: customizable cleaning programs to minimize product and solution waste.

Container / Application / Range

• Container: bottles.
• Industry: chemicals.
• Standard: ATEX / explosion-proof design available.
• Production rate: up to 40 CPM (product dependent).
• Capacity range: from 500 ml to 5 L.
• Supported caps: screw caps, push-on caps, flexspout.

Technical specifications

• Model: REVO-S C2.
• Machine type: rotary weighing filler with integrated capping.
• Maximum throughput: up to 40 CPM (product and cap dependent).
• Filling method: weight-based filling with post-fill weight control and automatic correction; Legal Metrology option available.
• Capacity range: 500 ml – 5 L.
• Container type: bottles.
• Capping: PACK’R COMPACT outfeed starwheel; screw caps up to 60 cps/min; push-on caps up to 100 cps/min.
• Format changeover time: full container + cap changeovers in less than 30 minutes.
• Tank: pressurized closed tank for consistent flow, reduced waste and contamination prevention.
• HMI: traceability, programmable recipes, maintenance indicators.
• Tooling: "Click & Play"® rapid-change tooling (no tools required); color-coded tooling for specific containers.
• Optional: nitrogen purging, ATEX/explosion-proof design, customized cleaning programs.
