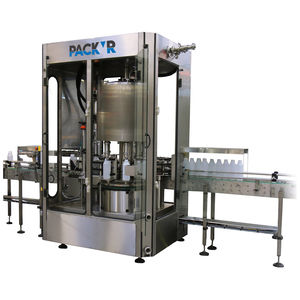

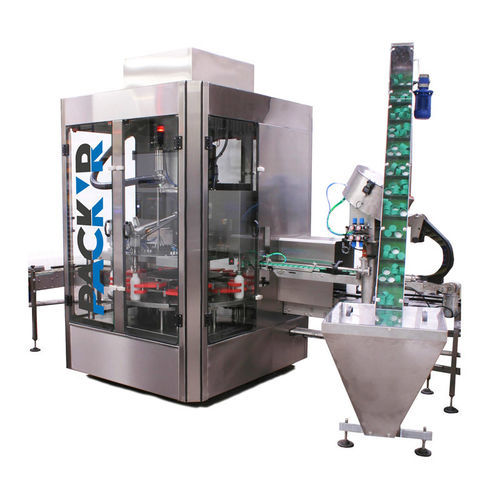

Automatic filling machine PULSA-S4

bottleliquidsfor chemical products

Description
The PACK’R PULSA-S indexed dosing carousel performs two primary operations:

• Filling: weight-based filling where the product weight in the container is monitored in real time.
• Post-fill control: weight control verifies the dispensed quantity versus the target, permits automatic correction of any drift, and generates production statistics and yield ratios.

Flexible configurations
Multiple configurations and applications enable a highly flexible production line that can evolve with requirements:

• Several capping stations
• Multiple formats per station
• Ultra-fast format changeovers

Key information

• Container: Bottles
• Industry: Chemicals
• Norm: ATEX / Explosion-proof design
• Speed: Up to 18 CPM
• Capacity per container: 500 ml to 5 L
• Caps accepted: Screw caps; Push-on caps; Flexspout
• Filling principle: Weight/scale-based filling with post-fill control
• Options: Legal Metrology, Nitrogen purging, Clean & Play®

Technical characteristics and advantages

• Pressurized tank: smaller tank volume; consistent flow rate despite viscosity variations; reduced product waste; closed system to avoid contamination.
• HMI: traceability; ergonomic interface; programmable recipes; maintenance indicators.
• Tooling system: “Click & Play”® tooling; dedicated color coding for different containers; tool-free tooling changes.
• Cleaning system: customizable cleaning programs; reduced cleaning fluid and product waste; optional “Clean & Play”® system.
• Filling: drip-free operation; legal metrology available; very high dosing accuracy; weighing unaffected by temperature variations; product savings by avoiding overfilling.
• Nitrogen purging: optional inerting for product protection after filling; prevents container collapse.
• Brushless capping system: consistent torque control; uninterrupted production; fast changeovers; traceability; cap presence detection and corrective positioning.

Additional resources

• Product brochure available in PDF (product documentation).
• Presentation video available (product presentation).

Technical specifications

• Brand: PACK’R
• Model: PULSA-S
• Container: Bottles
• Industry: Chemicals
• Norm: ATEX / Explosion-proof design
• Speed: Up to 18 CPM
• Capacity: From 500 ml to 5 L
• Caps accepted: Screw caps; Push-on caps; Flexspout
• Filling principle: Weight/scale-based filling with post-fill control
• Options: Legal Metrology, Nitrogen purging, Clean & Play®
