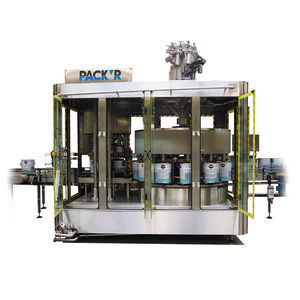

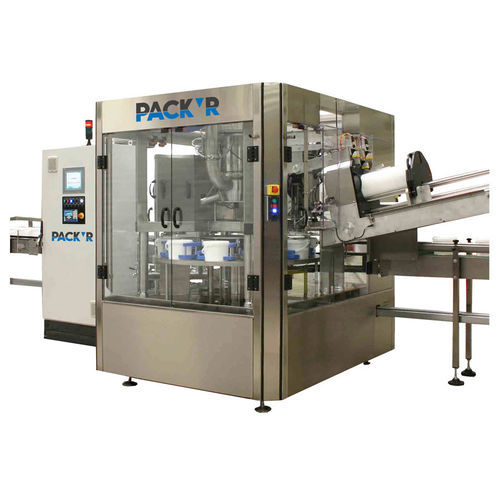

Weight filler-capper PULSA-S6

rotarygravimetricstep

Description:
The PACK’R PULSA-S dosing carousel performs two operations: weight-based filling and post-fill control.

• Filling: the product weight in the container is monitored in real time to control fill quantity
• Post-fill control: weight verification compares measured quantity to the target, enables self-correction, statistics and production ratios

Flexible configurations and applications:

• Multiple capping stations
• Optional heat-sealing function
• Several formats per station
• Ultra-fast format changeovers

Product key details:

• Container: Metal and plastic pails, 500 ml–20 L
• Industry: Chemicals
• Standard: ATEX / explosion-proof design (option)
• Speed: Up to 18 CPM
• Caps: Screw caps; Push-on caps

Technical characteristics and advantages:
Pressurized tank

• Smaller tank volume
• Consistent product flow despite viscosity variations
• Reduced product waste
• No contamination with closed tank system

Filling

• No drips
• Weight-based filling with post-fill weight control
• Legal Metrology option available
• Very high accuracy; weighing unaffected by temperature variations
• Product savings from elimination of overfilling

HMI

• Traceability
• User-friendly interface
• Programmable recipes
• Maintenance indicators

Nitrogen purging

• Optional product protection after filling
• Prevents container collapse

Tooling system

• Click & Play® quick-change tooling
• Dedicated color tooling per container
• Tool-free tooling change

Brushless capping system

• Consistent torque accuracy
• Uninterrupted production
• Fast changeovers
• Traceability and torque monitoring
• Cap presence checking and positioning correction

Cleaning system

• Custom cleaning programs
• Reduced volume of wasted product and cleaning fluids
• Clean & Play® optional system

Technical specifications

• Model: PULSA-S
• Brand: PACK’R
• Type: Step-by-step filler-capper (dosing carousel)
• Maximum speed: up to 18 CPM
• Container compatibility: metal and plastic pails, 500 ml–20 L
• Filling method: weight-based filling with post-fill control
• Norm/Certification: ATEX / explosion-proof design (available)
• Optional functions: heat sealing, nitrogen purging, Legal Metrology, custom cleaning programs
• Capping: Brushless capping system for screw and push-on caps with torque traceability and cap presence checking
• Tooling: Click & Play® quick-change tooling with dedicated color tooling
• HMI: traceability, programmable recipes and maintenance indicators
