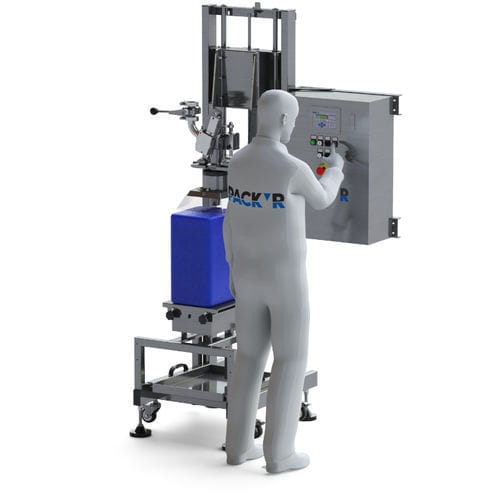

Semi-automatic filling and capping machine FLEXEO-S8

for liquidsweightindustrial

Overview
The FLEXEO-S is a semi-automatic filling and capping machine from PACKR for liquid products. It handles foamy, viscous or pasty products and adapts to bottles, jerrycans, pails and cans. Filling is measured per station by a weighing scale with closed-loop control, automatic correction and statistics. Configurations with 1 or 2 filling stations are available. Product feed can be by gravity or by pump.

Main features

• Semi-automatic filling and capping machine
• Weighing-scale filling with control, self-correction and statistics
• Configurations: 1 or 2 filling stations
• Product feed: gravity or pump
• Available in ATEX/explosion-proof design for hazardous products

Containers handled

• Bottles
• Jerrycans
• Cans
• Pails (buckets)

Caps

• Screw caps
• Push-on caps
• Flexspout

Technical advantages

• Materials: stainless steel or plastic (for corrosive products)
• Multi-format machine with rapid changeover
• Flexible equipment and compact footprint
• Quick tool-free changeover between container sizes
• Operation by a single operator
• Minimal product give-away with high dosing accuracy
• Weighing accuracy stable across temperature variations

Cadence and capacity (examples)
1 L: Up to 300 cph with 1 nozzle / up to 500 cph with 2 nozzles
5 L: Up to 200 cph with 1 nozzle / up to 400 cph with 2 nozzles
20 L: Up to 120 cph with 1 nozzle / up to 240 cph with 2 nozzles

Technical specifications

• Model: FLEXEO-S
• Type: Filling and capping machine (semi-automatic)
• Brand: PACKR
• Maximum cadence: Up to 8 CPM (cycles per minute)
• Capacity range: 500 ml – 30 L
• Filling accuracy: Weighing scale with control, self-correction and statistics
• Filling stations: 1 or 2 (configurable)
• Product feed options: Gravity or pump
• Caps supported: Screw caps, Push-on caps, Flexspout
• Materials: Stainless steel or plastic (for corrosive applications)
• Standards: ATEX / explosion-proof design available
• Multi-format design with rapid, tool-free changeover
