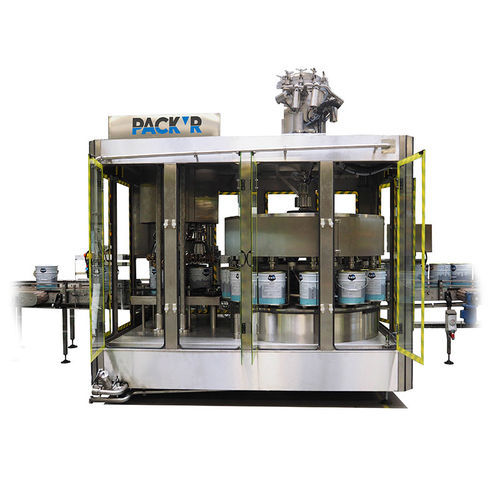

Weight filler-capper REVO-S2

rotarygravimetricfor containers

Description : PACK'R REVO-S is a compact rotary weight-based filler-capper designed for high-speed dosing and sealing of pails. The system performs weight filling with real-time weight monitoring and a post-fill weight control for correction, statistics and process traceability.

Configurations & flexibility : Multiple configurations and options allow a flexible, evolutive production line adapted to various requirements:

• Several capping stations
• Optional heat-sealing function
• Multiple formats per station
• Ultra-fast format changeovers

Key data :

• Container type: Pails (metal and plastic)
• Industry: Chemicals
• Standard: ATEX / Explosion-proof design
• Throughput: Up to 120 CPM
• Capacity range: 500 ml – 5 L
• Supported caps: Push-in lids, Crimp lids

Technical characteristics and advantages :
Pressurized tank

• Smaller tank footprint
• Consistent product flow despite viscosity variations
• Reduced product waste
• More economical cleaning cycles
• Closed tank avoids product contamination

Filling

• No drips
• Weight-filling system with real-time control
• Legal metrology option available
• Weighing accuracy insensitive to temperature variations
• Product savings by avoiding overfilling

HMI

• Traceability and data logging
• User-friendly interface
• Programmable recipes
• Maintenance indicators

Nitrogen purging

• Optional protection of product after filling
• Prevents container collapse

Tooling system

• Click & Play® dedicated tooling
• Color-coded tooling per container type
• Tool-free, fast tooling changeover

Capping system

• Compact capping module
• Two capping heads available
• Cap presence and positioning checks

Cleaning system

• Customized cleaning programs
• Reduced volume of wasted product and cleaning solutions

Technical specifications :

• Model: REVO-S
• Brand: PACK'R
• Product type: Rotary weight filler-capper
• Throughput: Up to 120 CPM
• Containers: Metal and plastic pails
• Capacity: 500 ml – 5 L
• Filling principle: Weight-filling with post-fill weight control (self-correction, statistics)
• Legal metrology: Optional
• Standards: ATEX / Explosion-proof design
• HMI: Traceability, programmable recipes, maintenance indicators
• Tooling: Click & Play® color-coded dedicated tooling, tool-free changeover
• Nitrogen purging: Optional (product protection, prevent container collapse)
• Capping: Push-in and crimp lids supported; cap presence and positioning checks
• Cleaning: Customized programs to reduce waste
• Documentation: Product PDF (technical brochure) available
