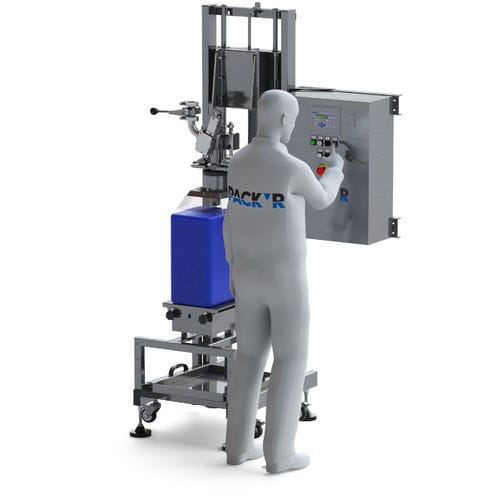

Semi-automatic filling machine FLEXEO-S17

jerry canliquidsfor pasty products

Description
The FLEXEO-S is part of PACKR's range of semi-automatic filling machines for liquid products. It accepts many product types (foamy, viscous or pasty) and a variety of container formats such as bottles, jerrycans, pails and cans. Filling accuracy is ensured by a weighing-scale dosing system with autonomous control, self-correction and statistics. The machine is offered in configurations with 1 or 2 filling stations. Product supply can be by gravity feed or by pump.

Technical characteristics and advantages

• Many configurations and options available: various materials (stainless steel or plastic for corrosive applications); ATEX/explosion-proof versions for hazardous products; multi-format design.
• Benefits: flexible equipment; compact footprint; fast changeover between container sizes without tooling; single-operator handling; minimal product give-away with high accuracy; weighing accuracy unaffected by temperature variations.
• Containers supported: bottles, jerrycans, cans, pails (multi-format).

Cadence and capacity
Up to 8 CPM (as stated on the product header).
1 L: Up to 300 cph with 1 nozzle / up to 500 cph with 2 nozzles
5 L: Up to 200 cph with 1 nozzle / up to 400 cph with 2 nozzles
20 L: Up to 120 cph with 1 nozzle / up to 240 cph with 2 nozzles

Caps and sealing

• Screw caps
• Push-on caps
• Flexspout

Industry and standards
Designed for the chemical industry and other liquid-product sectors. Available in ATEX / explosion-proof design.

Technical specifications

• Brand: PACKR
• Model: FLEXEO-S
• Type: Semi-automatic filling and capping machine
• Configurations: 1 or 2 filling stations
• Filling accuracy: Weighing-scale dosing with control, self-correction and statistics
• Feeding method: Gravity or pump
• Supported containers: Bottles, jerrycans, cans, pails (multi-format)
• Capacity range: From 500 ml to 30 L
• Performance: Up to 8 CPM (overall); detailed CPH per nozzle and volume as listed above
• Caps: Screw caps, Push-on caps, Flexspout
• Materials: Stainless steel or plastic options (for corrosive applications)
• Standards: Available in ATEX / explosion-proof design
• Suitable industry: Chemicals and other liquid-product industries
