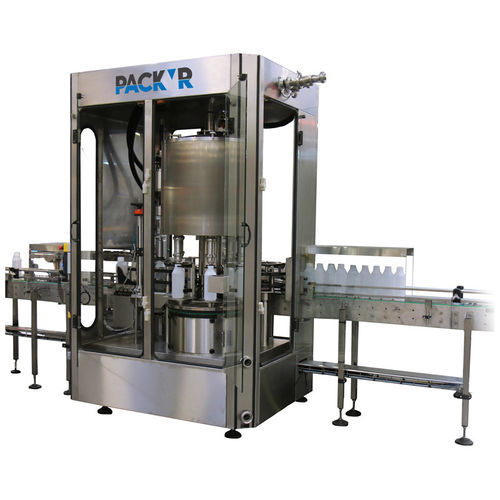

Automatic filling machine REVO-S C2-4

jerry canliquidsfor chemical products

Overview
PACK’R dosing carousel performs two operations: filling and control after filling. The filled quantity is controlled by the weight of the product in the container. Weight control checks the measured quantity versus the target, enables self-correction for drift, and supports statistics and production ratios.

Compact capping system
The PACK’R COMPACT capping system in the outfeed starwheel enables highly flexible machines with high productivity. Performance examples:

• Screw cap: up to 60 cps/min
• Push-on caps: up to 100 cps/min
• Full format changeovers (containers + cap) last less than 30 minutes

Filling principle
Weight-filling system: the filled quantity is controlled by weight. Advantages include very high accuracy, legal metrology availability, no drips and product savings due to no overfilling. Weighing accuracy is not affected by temperature variations.

Technical characteristics and advantages

• Pressurized tank: Smaller tank; consistent product flow rate even with viscosity variations; reduced amount of wasted product; more economical cleaning; no product contamination with closed tank system.
• Filling: No drips; weight-filling system; Legal Metrology available; very high accuracy; weighing accuracy not affected by temperature variations; product savings due to no overfilling.
• HMI: Traceability; user-friendly interface; programmable recipes; maintenance indicators.
• Nitrogen purging: Option available to protect product after filling and to prevent container collapse.
• Tooling system: "Click & Play"® system; dedicated color tooling for specific containers; tooling switch requires no tools.
• Capping system: Compact capping system; 2 capping heads; checking for cap presence and correct positioning.
• Cleaning system: Customized cleaning programs (available); reduced volume of wasted product and cleaning solutions.

Notes
This machine integrates weight control after filling for self-correction and production statistics. The COMPACT capping system fitted on the outfeed starwheel ensures flexible, high-productivity capping for multiple cap types.

Characteristics / technical specifications

• Model: REVO-S C2
• Brand: PACK’R
• Container: Jerrycans
• Industry: Chemicals
• Norm: ATEX / Explosion proof design
• Cadence: UP TO 40 CPM
• Capacity range: From 500 ml to 30 L
• Caps supported: Screw caps; Push-on caps; Flexspout
