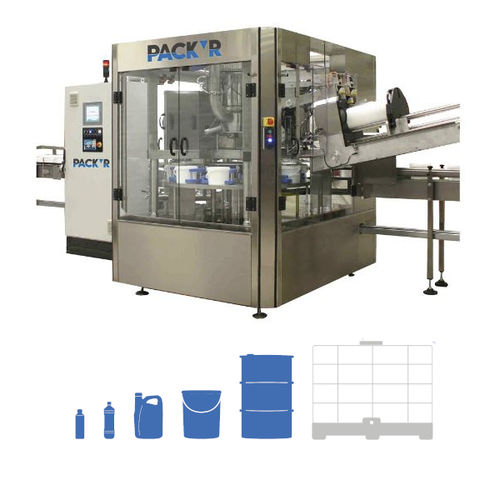

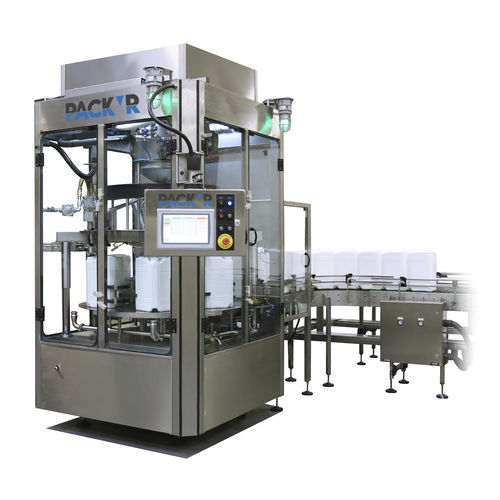

The PULSA-S is part of our automatic filling machines for liquid product. Many types of products are compatible with this filling machine (they can be foamy, viscous or pasty) and a variety of container types can be accommodated, e.g. bottles, jerrycans, buckets, cans. Filling accuracy is performed by a weighing scale (control, self-correction and statistics). The container is moving step by step on different stations that can be accommodated depending on the type of operation to perform (filling, capping, crimping, control, etc…). The machine configuration is then very flexible. The product can be fed by gravity or by the use of a pump.
Many configurations and options are available :
- Various materials available, stainless steel or plastic (for corrosive application)
- Available in ATEX for hazardous product
- Patented “Click & Play” tools
- Patented “Clean & Play” CIP for difficult products (paint for example)
- Pressurized filling up to 2 bars available for viscous product.
Benefits
- Flexible equipment for multitask application
- Compact design
- Quick changeover
- Minimum product give-away with very high accuracy
- High efficiency cleaning
- Torque control
Containers
- Bottles
- Jerrycans
- Cans
- Pails
Capping system
- Brushless technology (compatible with ATEX)
- Screw caps
- Push-on caps
- Pail heat-sealing
- Lid pressing or crimping
Cadence and capacity
- Up to 18 CPM
- From 500mL bottles up to 30L Jerrycan
Norm
- ATEX
- Explosion Proof Design
- UL
- CE
- Legal metrology
Markets
- Agrochemicals
- Chemicals
- Paint
- Petrochemicals
- Vegetable oils
- Food
