Electric cylinder I-Lock 75

telescopic

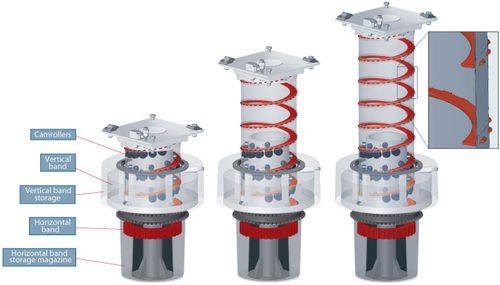

The I-Lock 75 principle of operation is quite simple: two stainless steel bands engage as they rotate to form a remarkably strong lift column resulting in a rigid structure. The column is capable of pushing or pulling action with infinite adjustability. The new 100x150x150 mm model, shown here, has travel of 1,600 mm and a load capacity of 400 kg. (see product specifications sheet of I-Lock 75) Since higher travel and higher capacity are possible, it is perfectly adapted to a whole new range of applications. With its unsurpassed ratio of deployed vs. collapsed height, the I-Lock Spiralift can be integrated into the most compact designs, ensuring precise lifting, reliable and smooth operation.
