- Palazzoli S.p.A.

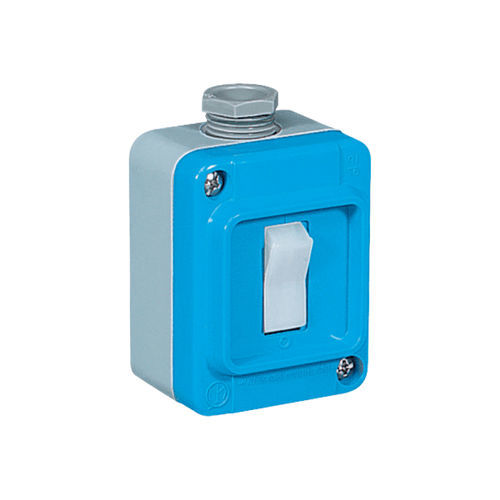

Rocker switch 202271camsingle-poleIEC
Add to favorites
Compare this product
Characteristics
- Type
- rocker, cam
- Number of poles
- single-pole
- Protection level
- IEC
- Mounting
- wall-mount
- Other characteristics
- control
- Primary current
10 A, 16 A
- Voltage
250 V, 400 V
- Diameter / length
48 mm
(1.9 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -50 °C
(-58 °F)- Width
62 mm
(2.4 in)- Height
90 mm
(3.5 in)
Description
Net weight - 0.20KG
Min order quantity - 10
EAN Code - 8014950200344
Gross Weight - 0.22KG
EN 60669-1:1999/A2:2008
EN 60669-1/IS1:2009
EN 60669-1:1999/A1:2002
EN IEC 63000:2018
EN 60669-1:1999
2011/65/EU (RoHS)
2012/19/EU (WEEE)
2014/35/EU (LVD)
Min conductor section - -
Colour - Grey RAL 7035 (Base), Blue RAL 5015 (Cover)
Max conductor section - -
Shock resistance - IK04 according to IEC/EN 62262
Frequency - 50/60Hz
IP Protection degree - IP67
Poles - 1P
Manufacturing material - Resin Thermosetting Palazzoli
Width - 62 mm
Execution - Wall mounting
Insulation Class - II
Dimensions - 90X62X48 mm
Window type -
Hole type - M20
Number of entries in enclosure - 1
Depth - -
CAM layout - -
Flush-mounting dimensions - -
No. discs - -
Function Apparatus Control - One way switches
