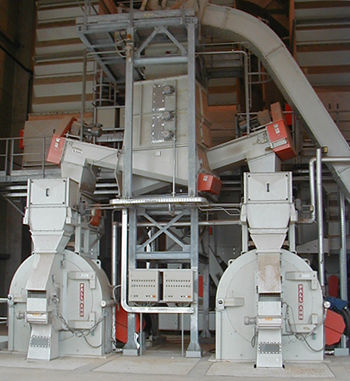

Impact mill PSKM Series

verticalfor wooddouble

The Double Stream Mill, series PSKM is used for the fine preparation of precut wood chips and annual plants such as bagasse, miscantus, cotton stalks, hemp stalks, corn straw and rice straw. The fine flakes produced are characterized by their low percentage of dust and coarse particles. The areas in which the end material is used are diverse. It is used for energy generation, as insulation material, the reinforcement of building components and as raw material for the production of fine surface layers of particle boards. Characteristics, Function Compact and sturdy, designed for continuous operation Bearing- and drive system easily exchangeable as a complete unit A slide to remove the grinding ring is supplied as standard. Dismantling of the impeller is not necessary Material feeding via vibratory feeder and a feed chute designed as a gravity separator Even distribution of the material in the grinding chamber Size reduction is performed by repeated impact onto the impeller wear plates and the grinding track profiles Depending on the requirement and desired degree of preparation, different grinding tracks and grinding profiles are used Advantages Homogenous material preparation at low specific power consumption High throughput rate Universal and adaptable to different feed materials Easily adaptable to desired end fineness Grinding track can be reversed by 180 degrees, therefore optimum utilization of all wear parts Adjustment to desired fineness by changing the gap between the impeller and the grinding track Grinding track easily exchangeable without special tooling High availability and extremely low maintenance costs
