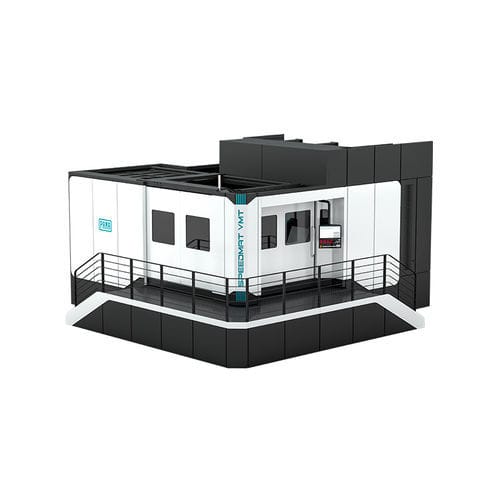

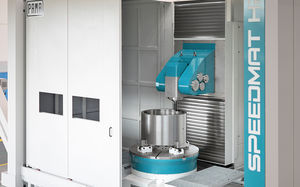

5-axis machining center SPEEDMAT VM series

verticalwith moving tablegantry

Product overview
PAMA SPEEDMAT VM gantry machining centres combine high dynamics and rigidity with high workpiece precision for demanding applications on small and medium components. The machine features a fixed portal structure, a movable crossrail and a travelling table. Available in a milling version (SPEEDMAT VM) and a milling/turning multitasking version (SPEEDMAT VMT).

Design and configuration
Structures are engineered using finite element analysis to optimise masses, increase static and dynamic rigidity and improve thermal symmetry.

• Available head solutions: HVA head with continuous axis inclined 45°
• A head with continuous tilting axis

Both head types are offered with electronic spindles in high-speed and high-torque configurations.

Table and spindle options
Table versions: TR (milling) for VM and TRT (milling & turning) for VMT. PAMA’s patented table support concept combines rolling bearings with hydrostatic support to enhance load capacity and accuracy.

Automation, attachments and software
Options include dedicated CNC attachment heads, palletised table systems, automatic tool and attachment-head changers. CNC control configurable with Siemens or Heidenhain. Integrated sensors managed by PAMA software enable unmanned cycles, process monitoring and energy optimisation.

Technical information (summary)
Range of maximum workpiece swing diameters: 1500 mm, 2000 mm and 3000 mm.

Tables
VM (working area and table)
X axis stroke (Table): 1700 - 2700 mm
Y axis stroke (Headstock): 1500 - 2700 mm
Z axis stroke (Crossrail): 1300 - 1700 mm
Swing diameter: 1500 - 3000 mm
Table / pallet size (VM): 1000 x 1000 - 2000 x 2000 mm
Load capacity (VM): up to 12,000 kg

VMT (working area and table)
X axis stroke (Table): 1700 - 2700 mm
Y axis stroke (Headstock): 1500 - 2700 mm
Z axis stroke (Crossrail): 1300 - 1700 mm
Swing diameter: 1500 - 3000 mm
Table / pallet size (VMT): Ø1250 - Ø2200 mm
Load capacity (VMT): up to 8,000 kg
Turning speed (VMT): up to 350 rpm

Spindle and headstock (summary)
Spindle transmission: Direct Drive
Spindle power (S6-40%): 84 / 85 kW (two spindle configurations)
Spindle torque (S6-40%): 901 / 450 Nm (two spindle configurations)
Spindle speed: 8,000 / 12,500 rpm (high-speed / high-torque options)

Axis drives and dynamics
X,Y,Z axes rapid feed: up to 50,000 mm/min
B axis rapid feed: up to 10 rpm
X,Y,Z axes acceleration: 3 m/s²

Headstock A / HVA typical torques
SPEEDMAT VM (A / HVA headstock): A axis contouring torque 4000 Nm; A axis clamping torque 8000 Nm
SPEEDMAT VMT (A / HVA headstock): A axis contouring torque 5000 Nm; A axis clamping torque 10000 Nm

Technical specifications

• Product family: SPEEDMAT VM (also available as SPEEDMAT VMT multitasking)
• Structure: fixed portal with movable crossrail and travelling table
• Workpiece swing diameters available: 1500 mm, 2000 mm, 3000 mm
• X axis stroke (table): 1700 - 2700 mm
• Y axis stroke (headstock): 1500 - 2700 mm
• Z axis stroke (crossrail): 1300 - 1700 mm
• Table / pallet size (VM): 1000 x 1000 - 2000 x 2000 mm
• Table / pallet size (VMT): Ø1250 - Ø2200 mm
• Load capacity: up to 12,000 kg (VM), up to 8,000 kg (VMT)
• Turning speed (VMT): up to 350 rpm
• Spindle transmission: Direct Drive
• Spindle power (S6-40%): 84 / 85 kW
• Spindle torque (S6-40%): 901 / 450 Nm
• Spindle speed: 8,000 / 12,500 rpm
• A axis contouring torque: 4000 Nm (VM) / 5000 Nm (VMT)
• A axis clamping torque: 8000 Nm (VM) / 10000 Nm (VMT)
• X,Y,Z axes rapid feed: up to 50,000 mm/min
• X,Y,Z axes acceleration: 3 m/s²
• B axis rapid feed: up to 10 rpm
• Table versions: TR (milling), TRT (milling + turning)
• Available attachment heads: HVA (45° continuous axis) and A head (continuous tilting axis)
• CNC: Siemens or Heidenhain options
• Patented table support concept: combines rolling bearings with hydrostatic support
