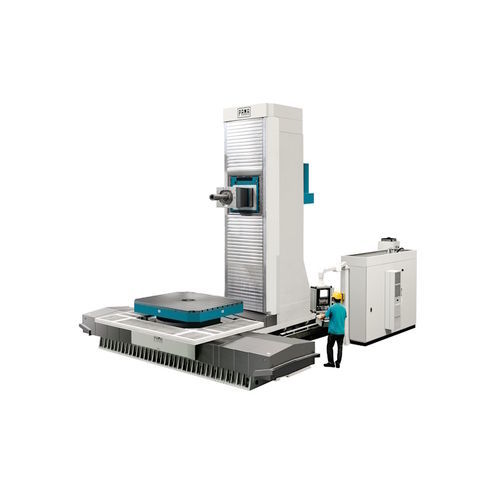

CNC boring and milling center SPEEDMAT RAM series

verticalT columntraveling-column

Overview
PAMA Speedmat RAM boring and milling centers deliver high static and dynamic rigidity with hydrostatic guidance and thermal-symmetry design for precision machining of small- and medium-sized components. The T-type structure integrates a movable column and a travelling table; machines are offered in milling and multitasking milling-turning configurations.

Design and key features
The structure is optimized by finite element analysis to balance mass distribution, stiffness and thermal behaviour. The ram is hydrostatically guided inside the headstock and uses a real-time feedback system to compensate thermal elongation. Hydrostatic rotating axes and table solutions provide damping and stiffness at the source, ensuring consistent accuracy during heavy cuts and long cycles.

Headstock and attachment options

• W headstock-ram: boring bar with mechanical transmission
• WD headstock-ram: boring bar with Direct Drive transmission
• MD headstock-ram: driver with Direct Drive transmission

Additional options and software
Configurable with CNC attachment heads, pallet/table handling systems, automatic tool and head changers. CNC controls available: Siemens, Heidenhain, Fanuc.

Technical information (summary)
PAMA Speedmat RAM covers maximum workpiece diameters from 2200 to 5000 mm. Key technical data include axis strokes, table sizes and loads, headstock/spindle options and linear-axis rapid feeds.

Tables (values and ranges)
WORKING AREA
X axis stroke (Table): 2200 - 5000 mm
Y axis stroke (Headstock): 1750 - 4000 mm
V axis stroke (Column): 1500 - 4000 mm
Z axis stroke (Ram): 1200 / 1600 mm
Swing diameter: 2200 - 5000 mm

MILLING TABLES
Table or pallet size: 1250x1250 - 3000x3000 mm
Load capacity: up to 50000 kg
B axis rapid feed: up to 6 rpm

TURNING TABLES
Table or pallet size: Ø1250 - Ø3500 mm
Load capacity: up to 32000 kg
Turning speed: up to 300 rpm

W HEADSTOCK-RAM (boring bar with range change)
Ram section: 430x430 mm
Boring spindle diameter: 130 - 160 mm
W axis (boring spindle): 800 mm
Spindle transmission: 2 ranges
Spindle power (S1): 41 - 82 kW
Spindle torque (S1): 1389 - 3451 Nm
Spindle speed: 3000 - 4000 rpm

WD HEADSTOCK-RAM (direct drive boring bar)
Ram section: 430x430 mm
Boring spindle diameter: 120 mm
W axis (boring spindle): 600 mm
Spindle transmission: Direct Drive
Spindle power (S1): 66 kW
Spindle torque (S1): 1175 Nm
Spindle speed: 5000 rpm

MD HEADSTOCK-RAM (direct drive driver)
Ram section: 430x430 mm
Spindle transmission: Direct Drive
Spindle power (S1): 66 - 90 kW
Spindle torque (S1): 822 - 1175 Nm
Spindle speed: 6000 rpm

LINEAR AXES FEATURES
X, Y, V, Z axes rapid feed: up to 40000 mm/min

Technical characteristics

• Model family: SPEEDMAT RAM
• Machine structure: T-type with movable column and travelling table
• Maximum workpiece diameter: 2200 - 5000 mm
• X axis stroke (table): 2200 - 5000 mm
• Y axis stroke (headstock): 1750 - 4000 mm
• V axis stroke (column): 1500 - 4000 mm
• Z axis stroke (ram): 1200 / 1600 mm
• Ram section: 430x430 mm
• Milling table sizes: 1250x1250 - 3000x3000 mm
• Milling table load capacity: up to 50000 kg
• Turning table sizes: Ø1250 - Ø3500 mm
• Turning table load capacity: up to 32000 kg
• B axis rapid feed: up to 6 rpm
• Linear axes rapid feed: up to 40000 mm/min
• Headstock options: W, WD, MD (mechanical range change / Direct Drive / Direct Drive driver)
• Spindle power range: 41 - 90 kW depending on headstock
• Spindle torque range: 822 - 3451 Nm depending on headstock
• Spindle speeds: up to 6000 rpm depending on headstock
• Hydrostatic guidance and hydrostatic rotating axes for damping and stiffness
• Thermal symmetry measures and real-time ram elongation compensation (patented)
• CNC options: Siemens, Heidenhain, Fanuc
