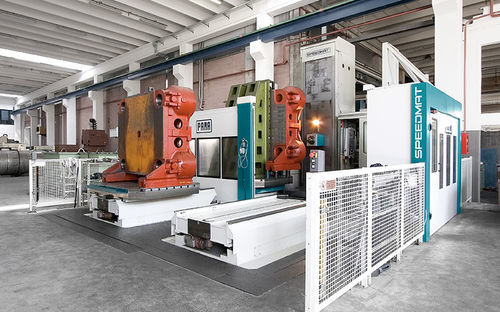

CNC boring and milling center SPEEDMAT series

traveling-columnmulti-axisfor large workpieces

Product overview
PAMA SPEEDMAT boring and milling centers combine damping and high rigidity with precision for heavy-duty machining. The machines feature a T-type structure with a movable column and a travelling table; the column is thermally symmetric with a central headstock to maximize geometric accuracy. Available in pure milling or multitasking milling-and-turning configurations.

Headstock options

• W headstock: boring bar with mechanical (2-range) transmission
• WD headstock: boring bar with Direct Drive transmission
• MD headstock: motorized spindle with Direct Drive transmission

Design & features
Structures are engineered by finite element analysis to optimise mass distribution, static and dynamic rigidity, and thermal symmetry. W and WD boring spindles include a feedback system to compensate thermal elongation (PAMA patent). Milling tables use hydrostatic rotary axes for high stiffness and damping. For multitasking, TRT hydrostatic tables deliver enhanced turning performance. Machine versatility is increased with CNC attachment heads, palletised tables, automatic tool and head changing systems. CNC controls available: Siemens, Heidenhain, Fanuc.

Technical tables (summary)
Range of maximum workpiece diameters: 2200 mm up to 5000 mm

WORKING AREA
X axis stroke (Table): 2200 - 5000 mm
Y axis stroke (Headstock): 1750 - 3750 mm
Z axis stroke (Column): 1500 - 4000 mm
Swing diameter: 2200 - 5000 mm

MILLING TABLES
Table or pallet size: 1250x1250 - 3000x3000 mm
Load capacity: up to 50000 kg
B axis rapid feed: up to 6 rpm

TURNING TABLES
Table or pallet size: Ø1250 - Ø3500 mm
Load capacity: up to 32000 kg
Turning speed: up to 300 rpm

W HEADSTOCK (boring bar with range change)
Boring spindle diameter: 130 - 160 mm
W axis (boring spindle): 800 mm
Spindle transmission: 2 ranges
Spindle power (S1): 41 - 82 kW
Spindle torque (S1): 1389 - 3451 Nm
Spindle speed: 3000 - 4000 rpm

WD HEADSTOCK (direct drive boring bar)
Boring spindle diameter: 120 - 160 mm
W axis (boring spindle): 600 - 800 mm
Spindle transmission: Direct Drive
Spindle power (S1): 66 - 82 kW
Spindle torque (S1): 1175 - 2494 Nm
Spindle speed: 4000 - 5000 rpm

MD HEADSTOCK (direct drive driver)
Spindle transmission: Direct Drive
Spindle power (S1): 66 - 90 kW
Spindle torque (S1): 822 - 2494 Nm
Spindle speed: 4000 - 6000 rpm

LINEAR AXES FEATURES
X, Y, Z axes rapid feed: up to 50000 mm/min

Models / Sizes
Available model sizes indicated: 3000 - 3800 - 4600 - 5000

Technical specifications

• Range of maximum workpiece diameters: 2200 mm – 5000 mm
• X axis stroke (Table): 2200 – 5000 mm
• Y axis stroke (Headstock): 1750 – 3750 mm
• Z axis stroke (Column): 1500 – 4000 mm
• Swing diameter: 2200 – 5000 mm
• Milling table sizes: 1250x1250 – 3000x3000 mm
• Milling table load capacity: up to 50000 kg
• B axis rapid feed: up to 6 rpm
• Turning table sizes: Ø1250 – Ø3500 mm
• Turning table load capacity: up to 32000 kg
• Turning speed: up to 300 rpm
• W headstock: boring spindle diameter 130–160 mm; W axis 800 mm; 2-range transmission; spindle power 41–82 kW; torque 1389–3451 Nm; speed 3000–4000 rpm
• WD headstock: boring spindle diameter 120–160 mm; W axis 600–800 mm; Direct Drive; spindle power 66–82 kW; torque 1175–2494 Nm; speed 4000–5000 rpm
• MD headstock: Direct Drive; spindle power 66–90 kW; torque 822–2494 Nm; speed 4000–6000 rpm
• Linear axes rapid feed: up to 50000 mm/min
