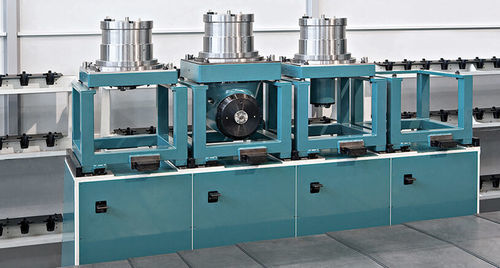

Head tool storage magazine

Overview
PAMA offers a range of attachment head magazines designed to interface with both horizontal and vertical machines. The attachment head magazine (pick-up) stores and protects attachment heads from contamination generated by machining processes and the workshop environment when not in use.

PAMA attachment head magazines for vertical machines
The PAMA attachment head magazine (pick-up) protects attachment heads from contamination and, depending on the selected configuration, can be:

• installed in a fixed position
• equipped with a translating slide to minimise attachment change times
• installed on the machine to minimise attachment change times and the occupied space

The attachment head change operations are fully automated.
Available types for vertical machines:

• Fixed PAMA attachment head magazines for vertical machines
• Carousel PAMA attachment head magazines for vertical machines
• Shuttle PAMA attachment head magazines for vertical machines

PAMA attachment head magazines for horizontal machines
The PAMA attachment head magazine (pick-up) receives and protects attachment heads from contamination. Depending on the selected configuration, the PAMA attachment head magazine can be:

• installed in a fixed position
• equipped with a translating slide to reduce the occupied space

The CNC attachment head change operations are fully automated.
Available types for horizontal machines:

• Fixed PAMA attachment head magazines for horizontal machines
• Translating PAMA attachment head magazines for horizontal machines

Technical characteristics / specifications

• Function: storage, protection and automated handling (pick-up) of attachment heads
• Application: designed to interface with vertical and horizontal machines
• Configurations: fixed, translating slide, machine-mounted (to reduce change time and footprint)
• Types (vertical): Fixed, Carousel, Shuttle
• Types (horizontal): Fixed, Translating
• Operation: fully automated attachment head change operations
