Motorized head TS

Overview

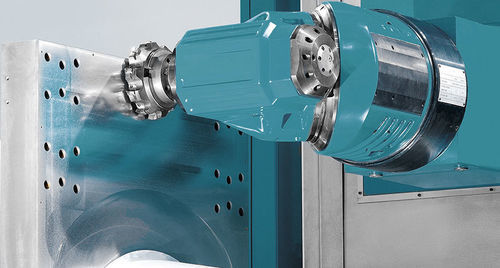

PAMA Attachment heads are modular CNC heads designed for milling, boring and turning on horizontal and vertical machines. Developed in Brescia, they cover a wide range of power, torque and spindle-speed combinations to suit medium- and heavy-duty production environments.

Attachment head families and main features

• TS: automatic right-angle attachment heads for horizontal and vertical machines
  • automatic axis positioning: every 2.5° / 1° / 0.001°
  • power: 20 kW to 80 kW
  • torque: 600 Nm to 6000 Nm
  • spindle speed: up to 3000 rpm
  • automatic tool change

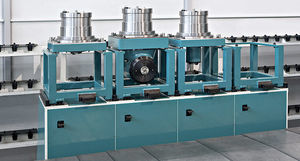

  • automatic head change
  • external and through-tool coolant
• TU: automatic universal attachment heads for horizontal and vertical machines
  • automatic axis positioning: every 2.5° / 1° / 0.001°
  • power: 37 kW to 50 kW
  • torque: 1000 Nm to 1200 Nm
  • spindle speed: up to 6000 rpm
  • automatic tool change
  • automatic head change
  • external and through-tool coolant
• TTL: automatic universal attachment heads with orthogonal axes for horizontal and vertical machines
  • automatic axis positioning: every 1° / 0.001°
  • power: 30 kW to 50 kW
  • torque: 115 Nm to 2500 Nm
  • spindle speed: up to 14000 rpm
  • automatic tool change
  • automatic head change
  • external and through-tool coolant
• TW: automatic universal attachment heads with continuous orthogonal axes for horizontal and vertical machines
  • continuous automatic axis positioning
  • power: 30 kW to 50 kW
  • torque: 115 Nm to 6000 Nm
  • spindle speed: up to 14000 rpm
  • automatic tool change
  • automatic head change
  • external and through-tool coolant
• PR: boring extension heads for horizontal and vertical machines
  • power: 15 kW to 73 kW
  • torque: 1000 Nm to 2000 Nm
  • spindle speed: up to 6000 rpm
  • maximum extension length: 1800 mm
  • automatic tool change
  • automatic CNC head change
  • external and through-tool coolant
• Customized CNC heads: PAMA specialists design customised attachment heads to meet specific customer production requirements

Integration with other CNC heads

• facing heads
• electronic spindles
• 5-axis heads
• angular heads
• multi-spindle heads

Applications
Suitable for milling, boring and turning operations on horizontal and vertical machining centers and lathes. Ideal for series production, complex part machining and integrated multi-head configurations.

Technical specifications

• Automatic axis positioning: every 2.5° / 1° / 0.001° or continuous (family dependent)
• Power range: 15 kW to 80 kW (family dependent)
• Torque range: 115 Nm to 6000 Nm (family dependent)
• Spindle speed: up to 14000 rpm (family dependent); some families limited to 3000 rpm or 6000 rpm
• Automatic tool change: available
• Automatic head change: available (including CNC head change for some families)
• Coolant: external and through-tool coolant options
• Maximum boring extension (PR): up to 1800 mm
• Available head types: right-angle, universal, orthogonal-axes, continuous-axes, boring extensions, radial/axial turning, customised designs
