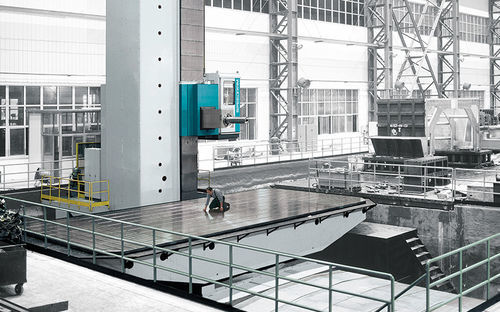

Horizontal rotary table T seriesverticaltiltingfor turning
Add to favorites
Compare this product
Characteristics
- Configuration
- horizontal, vertical, tilting
- Applications
- for milling, for machining, for turning
- Other characteristics
- CNC, large, heavy-duty, for heavy loads, linear, with linear motion, high-capacity
- Diameter
Max.: 8,000 mm
(315 in)Min.: 1,000 mm
(39 in)
Description
Overview
TH — PAMA rotary translating milling tables for horizontal machines
tr — PAMA rotary translating milling tables for horizontal machines
trt — PAMA rotary translating milling/turning tables for horizontal and vertical machines
trv — PAMA translating milling tables for horizontal and vertical machines
THH / TTH — PAMA rotary translating milling and turning tables for horizontal and vertical machines
tht — PAMA tilting milling tables for horizontal machines
Additional technical notes
Technical specifications
- PAMA offers a comprehensive range of milling and turning tables developed for heavy-duty machining, designed and engineered at PAMA in Rovereto.
- Specific tilting table families have been developed in-house for the wind energy sector and other heavy applications.
TH — PAMA rotary translating milling tables for horizontal machines
- Hydrostatic preloaded guides on the linear axis
- Hydrostatic preloaded turntable on the rotating axis
- Capacity: 50 t to 600 t
- Table plate sizes: from 2,000 × 2,000 mm up to 8,000 × 12,000 mm
- Linear stroke: from 1,500 mm up to 8,000 mm
tr — PAMA rotary translating milling tables for horizontal machines
- Roller guides on the linear axis
- Hydrostatic preloaded turntable on the rotating axis
- Capacity: 3 t to 50 t
- CNC table plate sizes: from 1,000 × 1,000 mm up to 3,000 × 3,000 mm
- Linear stroke: from 1,500 mm up to 5,000 mm
trt — PAMA rotary translating milling/turning tables for horizontal and vertical machines
- Roller guides on the linear axis
- Hydrostatic bearing + support for the rotating axis
- Capacity: 4 t to 15 t
- CNC table rotation speed: 160 rpm to 350 rpm
- CNC table plate sizes: from 1,250 mm up to 2,500 mm
- Linear stroke: from 2,000 mm up to 4,600 mm
- Rotating axis support uses a hybrid system combining an axial/radial bearing and a hydrostatic bearing (PAMA patent)
trv — PAMA translating milling tables for horizontal and vertical machines
- Roller guides on the linear axis
- Capacity: 15 t to 30 t
- CNC table plate sizes: from 1,500 × 5,000 mm up to 2,500 × 10,000 mm
- Linear stroke: from 5,000 mm up to 11,000 mm
THH / TTH — PAMA rotary translating milling and turning tables for horizontal and vertical machines
- Hydrostatic preloaded guides on the linear axis
- Hydrostatic preloaded turntable
- Capacity: 30 t to 300 t
- CNC table rotation speed: 45 rpm to 120 rpm
- CNC table plate sizes: from 3,000 mm up to 8,000 mm
tht — PAMA tilting milling tables for horizontal machines
- Hydrostatic preloaded guides on the linear axis
- Hydrostatic preloaded turntable
- Maximum inclination: 10°
- Capacity: up to 120 t
- Table plate sizes: up to 5,000 × 5,000 mm
Additional technical notes
- Series selection depends on capacity and application: some families use roller guides, others use hydrostatic preloaded guides.
- Plate sizes and linear stroke ranges cover small CNC tables up to very large plates for heavy machining.
Technical specifications
- Guide types: hydrostatic preloaded guides or roller guides (series-dependent)
- Turning axis support: hydrostatic preloaded turntable or hydrostatic bearing + support (hybrid axial/radial + hydrostatic for some rotating tables, PAMA patent)
- Capacity ranges: 3 t to 600 t (series subranges: 3–50 t, 4–15 t, 15–30 t, 30–300 t, 50–600 t)
- Table plate sizes: 1,000 × 1,000 mm up to 8,000 × 12,000 mm (series-specific ranges apply)
- Linear stroke ranges: 1,500 mm up to 11,000 mm (series-specific ranges apply)
- CNC table rotation speeds: 45 rpm up to 350 rpm depending on series
- Maximum tilting: up to 10° for tilting tables
