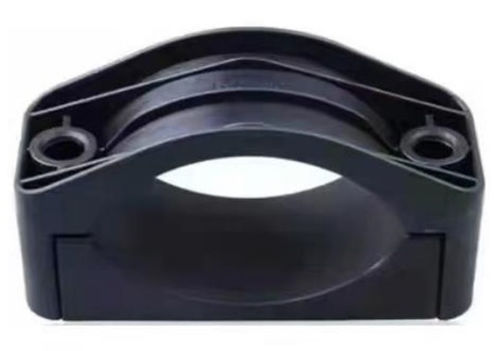

Nylon cable clamp SCP series

TREFOIL CLAMP - Material: Nylon Polymer Non-FR - Recommended Distance between two clamps: 1000mm or 1 Meter - Recommended Clamp Accessories: 2 MS Zinc Passivized Plated bolts, nuts, Plain washers - Optimal Usage: Single core cable to be arranged in the clamps in a single configuration - Tolerance: ± 5% Part No | Cable OD mm | L1 | L2 | L3 | L4 --- | --- | --- | --- | --- | --- SCP-101-EC | 13-22 | 60 | 90 | 50 | 45 SCP-102-EC | 22-30 | 60 | 90 | 60 | 55 SCP-103-EC | 30-40 | 75 | 110 | 60 | 60 SCP-104-EC | 40-55 | 85 | 115 | 60 | 70 SCP-105-EC | 55-70 | 100 | 130 | 60 | 90 SCP-106-EC | 70-100 | 120 | 150 | 60 | 120 - Brand: Paprsky - Material: Nylon Polymer Non-FR - Recommended Distance between two clamps: 1000mm or 1 Meter - Recommended Clamp Accessories: 2 MS Zinc Passivized Plated bolts, nuts, Plain washers - Optimal Usage: Single core cable to be arranged in the clamps in a single configuration - Tolerance: ± 5% - Available Part Numbers: SCP-101-EC, SCP-102-EC, SCP-103-EC, SCP-104-EC, SCP-105-EC, SCP-106-EC - Availability: Usually ships within 4 weeks
