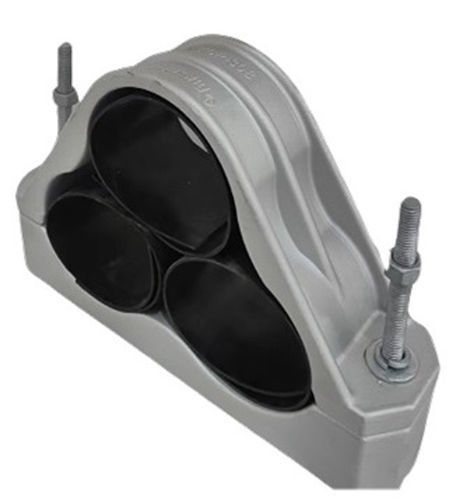

Aluminium cable clamp ALTCP series

TREFOIL CABLE CLEAT - Material: Aluminium Alloy - Clamp Accessories: 3 MS Zinc Passivized Plated bolts, nuts, Plain washers - Optimal Usage: Three Single core cables to be arranged in the clamps in a trefoil configuration - Material Features: Non-magnetic Aluminium with rubber inserts for abrasion protection TREFOIL CABLE CLEAT Part No. | Cable OD mm | L1 | L2 | L3 | L4 ALTCP-301 | 30-37 | 120 | 158 | 55 | 95 ALTCP-302 | 37-47 | 150 | 180 | 60 | 135 ALTCP-303 | 47-60 | 150 | 180 | 60 | 135 ALTCP-304 | 60-70 | 180 | 215 | 65 | 155 ALTCP-305 | 70-80 | 225 | 260 | 70 | 185 ALTCP-306 | 80-90 | 225 | 265 | 80 | 205 ALTCP-307 | 90-100 | 235 | 315 | 80 | 235 ALTCP-308 | 100-118 | 290 | 340 | 80 | 250 ALTCP-309 | 118-130 | 325 | 375 | 80 | 285 ALTCP-310 | 130-145 | 345 | 385 | 80 | 290 ALTCP-311 | 140-166 | 380 | 410 | 95 | 330 ALTCP-312 | 160-180 | 401-432 | 470 | 100 | 346 - Material: Aluminium Alloy - Clamp Accessories: 3 MS Zinc Passivized Plated bolts, nuts, Plain washers - Optimal Usage: Three Single core cables to be arranged in the clamps in a trefoil configuration - Material Features: Non-magnetic Aluminium with rubber inserts for abrasion protection
