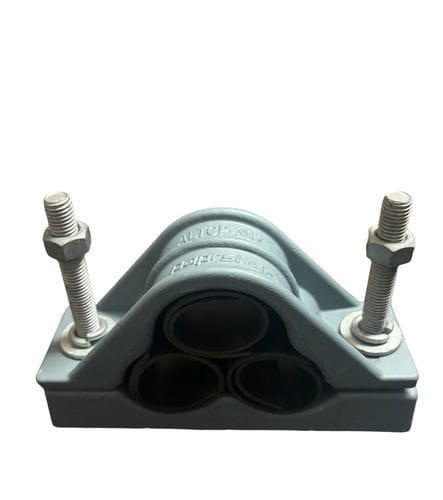

Aluminium cable clamp ALTCP series

steel

TREFOIL CLAMP - Material: Aluminium Alloy Epoxy Coating - Clamp Accessories: 3 MS Zinc Passivized Plated bolts, nuts, Plain washers - Optimal Usage: Three Single core cables to be arranged in the clamps in a with recommended distance in a trefoil configuration - Material Features: Non-magnetic Aluminium with rubber inserts for abrasion protection Part No. | Cable OD mm | L1 | L2 | L3 | L4 - ALTCP-301-EC | 30-40 | 120 | 158 | 55 | 95 - ALTCP-302-EC | 40-50 | 150 | 180 | 60 | 135 - ALTCP-303-EC | 50-60 | 150 | 180 | 60 | 135 - ALTCP-304-EC | 60-70 | 180 | 215 | 65 | 155 - ALTCP-305-EC | 70-80 | 225 | 260 | 70 | 185 - ALTCP-306-EC | 80-90 | 225 | 265 | 80 | 205 - ALTCP-307-EC | 90-100 | 235 | 315 | 80 | 235 - ALTCP-308-EC | 100-120 | 290 | 340 | 80 | 250 - ALTCP-309-EC | 120-140 | 325 | 375 | 80 | 285 - ALTCP-310-EC | 130-145 | 345 | 385 | 80 | 290 - ALTCP-311-EC | 140-166 | 380 | 410 | 95 | 330 - ALTCP-312-EC | 160-180 | 401-432 | 470 | 100 | 346 - Brand: Paprsky - Material: Aluminium Alloy with Epoxy Coating - Accessories: 3 MS Zinc Passivized Plated bolts, nuts, Plain washers - Usage: For arranging three single core cables in trefoil configuration - Features: Non-magnetic aluminium, rubber inserts for abrasion protection - Availability: Usually ships within 4 weeks
