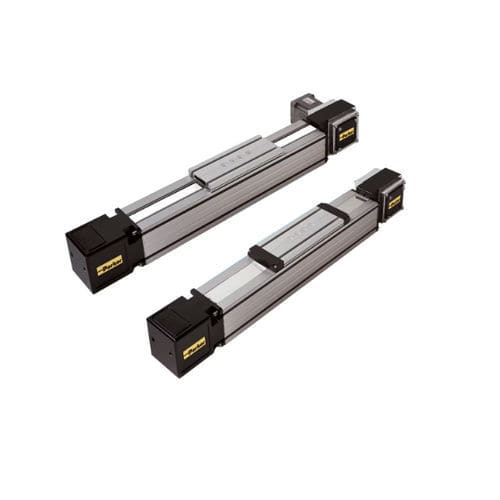

High-performance actuator LBB120

electriclinearrodless

HPLA120 actuators incorporate a high strength timing belt, guided by low friction, heavy-duty roller wheels, inside a sealed housing. With load capacity to 6900N and speeds up to 5m/s, HPLA120's are optimized for high speed, single or multi-axis systems The HPLA series of high performance linear actuators has an extremely robust design that offers long service life and low maintenance to all industrial handling applications. Its main features are high speed, high acceleration and long travel lengths, combined with a stiff, rigid construction allowing the use of the LBB120 even under harsh environmental conditions. It is ideally suited for use in either single axis configurations or high speed, multi-axis gantry systems. The HPLA carriage is rigidly supported on three sides by heavy duty roller bearings which are preloaded to eliminate play in the system. The LBB120’s high strength, steel reinforced belt and pulley system provides fast, highly repeatable positioning of the carriage. The mounting of the belt to the carriage is designed to enable easy replacement of the belt without the need to remove the payload. Markets: • Factory Automation • Machine Tools • Packaging Machinery • Miscellaneous Manufacturing • Coatings / Ink / Paint • Miscellaneous Processing Features/Benefits: • Plastic Roller Bearings - suitable for clean operation (travel surface is free of lubricants), low maintenance • Robust Construction - for heavy duty applications under harsh environments • Timing Belt and Pulley Drive Mechanism - for fast and accurate positioning with high mechanical efficiency and long service life • Steel Strip Cover - for additional environmental protection
