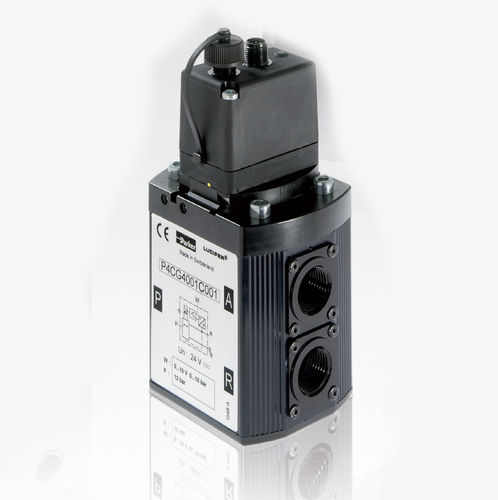

Proportional pressure regulator EPP4 Comfort series
for airsingle-stagehigh-pressure

proportional pressure regulator
proportional pressure regulator
proportional pressure regulator
proportional pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for air
Number of stages
single-stage
Applications
high-pressure
Other characteristics
compact, high-precision, proportional, electro-pneumatic
Pressure

Min.: 1 bar (14.5 psi)

Max.: 21 bar (304.58 psi)

Orifice diameter

Min.: 0.25 in

Max.: 2 in

Flow

Min.: 150 m³/h (5,297.2 ft³/h)

Max.: 2,700 m³/h (95,349.6 ft³/h)

Description

The EPP4 family is an electro pneumatic pressure regulator. The COMFORT range regulators have a second M12 connector that can be used to connect the device to a PC to easily configure the regulation parameters.A pulsed width modulated solenoid valve controls the output pressure proportionally to an analog input signal. A very high accuracy is guaranteed thanks to a high precision closed loop signal provided by a built in pressure sensor. EPP4 Comfort ranges share the same reliable mechanical parts and proportional regulation as the Basic ones giving the same characteristics for hysteresis or precision. Markets: • Robotics • Paper industry • Machine tools • Mobile • Buildings • Textile • Instrumentation • Semi conductor Features/Benefits: • Long life expectancy • Compact and light • Low power • Proven Parker expertise who is a pioneer in pressure regulation technology • Atex construction available • Customized product capability • high pressure handling up to 20 bars Applications: • Oxyfuel/laser cutting machines • Spot welding robots • Sand/shot blasting machines • Coating machines
