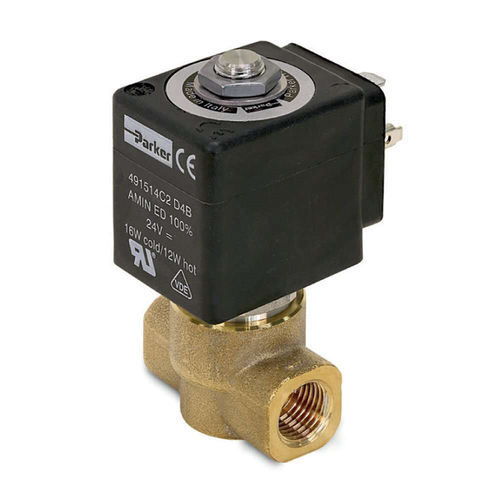

Direct-operated solenoid valve
2-wayNCwater

direct-operated solenoid valve
direct-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
water
Body
compact, rugged, brass, IP65
Other characteristics
high-performance
Temperature

Min.: -10 °C (14 °F)

Max.: 140 °C (284 °F)

Pressure

Min.: 0 bar (0 psi)

Max.: 20 bar (290.1 psi)

DN

0.125 in, 0.25 in

Voltage

Min.: 24 V

Max.: 240 V

Description

The Parker range of 2-way low-lead brass solenoid valves provide superior performance, resulting from the entire stainless-steel structure of the valve pilots. The forged body is made of CW510L low-lead brass - all parts listed in this page are NSF169 certified. Compact and robust at the same time, the stainless-steel nozzle improves valve life, endurance and resistance to lime-scale build up effect. A wide range of electrical parts can be used with this valve, including IP65 VDE and UL solutions. Typical applications include cold water loading function or hot water-steam on/off control. Markets: • Beverage Features/Benefits: • Extremely efficient against limescale build-up • High performance and low power consumption electrical components • Wide range of configurations and approvals • Strong and robust design • High reliability • Minimize the risk of failures when your equipment is operating • Avoid downtime • Electrical: from 4 Watts up to 14 Watts • Valve Body: Moulded brass, CW510L UNI EN 12165 • Seals: FDA FKM, Ruby • Sleeve, Plungers and Nozzle: Stainless steel Applications: • Beverage Dispensing & Vending Machines • Water Loading Control of a Boiler • Steam Control • Cold, Hot and Superheated Water Shut-off • Cold Water and Steam Mixing • Steam Pressure Control (pressure switch) • Automatic Water Dispensers
